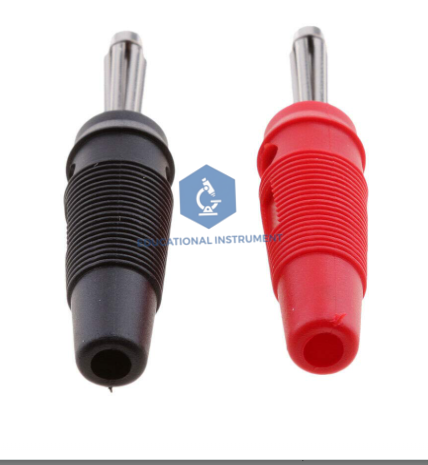

4MM BANANA PLUG CONNECTORS
Product Code : SCL-MH-11991
Engineered for high-integrity electrical pathways, these 4mm Banana Plug Connectors facilitate secure, low-resistance connections in advanced University and Vocational (TVET) physics laboratories. Compliant with IEC/EN safety standards for electronic test accessories, they serve as the primary interface for power distribution and signal measurement, ensuring repeatability in experimental data acquisition across modular educational environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Contact Material |
High-Conductivity Nickel-Plated Brass |
|
Spring Type |
Multi-contact Lantern Spring (Steel) |
|
Insulation Material |
Impact-Resistant, High-Density ABS/Polypropylene |
|
Contact Diameter |
4.0mm (Standardized) |
|
Connection Type |
Solderless Cross-Hole with Set-Screw Termination |
|
Current Rating |
10A - 15A Nominal (Continuous Load) |
|
Voltage Rating |
30VAC - 60VDC |
|
ISO Compliance Code |
ISO 9001:2015 |
|
HS Code |
8536.69 (Plugs and Sockets for Coaxial Cables) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Standardized 4.0mm Geometry. Outcome: Facilitates the Application of modular circuit design, allowing students to integrate disparate laboratory modules—including Power Supplies, Rheostats, and Digital Meters—into a cohesive experimental system.
Feature: Low-Impedance Nickel-Plated Contacts. Outcome: Minimizes parasitic resistance within the circuit, enabling students to Analyze voltage drops and potential differences with high precision, supporting rigorous verification of Ohm's Law.
Feature: Color-Coded High-Visibility Insulation. Outcome: Reinforces Knowledge of safety protocols and polarity management, significantly reducing laboratory error rates and hardware damage during complex circuit assembly.
Feature: Solderless Termination. Outcome: Encourages the Synthesis of temporary circuit prototypes, allowing for rapid iteration and troubleshooting of electronic configurations in a classroom setting.
International Logistics & Compliance
All consignments are prepared in export-grade seaworthy crating (ISPM-15 compliant) to mitigate environmental stressors during multi-modal transit. Comprehensive documentation is provided with every shipment, including the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical data sheets in English. The connectors feature a tropicalized design, lab-tested for operational stability in ambient temperatures up to 45°C and 90% humidity, meeting the durability requirements for international procurement in diverse geographical climates.
Why Source from the OEM?
Procurement through the OEM ensures total vertical integration of the manufacturing process, from high-speed precision metal stamping to automated polymer injection molding. This oversight eliminates the technical inconsistencies associated with third-party traders. Each production run is batch-tested for uniformity in contact tension and dielectric strength. Sourcing from the OEM guarantees direct factory spares availability and long-term technical support, ensuring institutional assets remain operational throughout their lifecycle.
