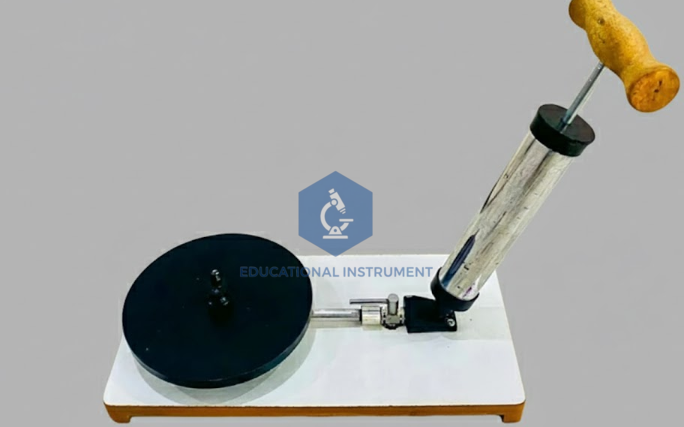

Air Pump (Vacuum Pump with Aluminium Plate)
Product Code : SCL-PLE-11803
Engineered for creating controlled sub-atmospheric conditions, this manual Air Pump and Vacuum Plate assembly is optimized for demonstrating Boyle’s Law, sound transmission in vacuums, and state-change phenomena. Designed for University and Secondary physics laboratories, the unit features a high-grade aluminium base for airtight seal integrity. Compliant with international pedagogical standards, it supports high-duty cycle use in technical vocational (TVET) curricula.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Platform Material |
Heavy-duty Cast Aluminium (Machined flat for vacuum seal) |
|
Pump Mechanism |
Dual-action manual piston with corrosion-resistant cylinder |
|
Plate Diameter |
Precision-ground surface (Standard laboratory sizing) |
|
Seal Interface |
Integrated high-vacuum rubber gasket / stopcock assembly |
|
Tubing Grade |
Reinforced non-collapsible vacuum-rated pressure hose |
|
ISO Compliance |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
8414.10.00 (Vacuum Pumps for laboratory use) |
|
Mounting |
Stable cast-iron/steel tripod base with anti-vibration feet |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Machined Aluminium Plate Surface.Outcome: Allows students to "Apply" vacuum grease and gaskets to achieve hermetic seals, demonstrating industrial sealing protocols.
Feature: Dual-Action Piston Pump. -Outcome: Supports the "Analysis" of mechanical advantage and pressure differentials through physical exertion and gauge observation.
Feature: Integrated Release Valve. -Outcome: Facilitates "Evaluation" of atmospheric re-entry speed and gas expansion, crucial for fluid dynamics modules.
Feature: Transparent Bell Jar Compatibility (Base Only). -Outcome: Enables students to "Understand" the absence of sound transmission in a vacuum by isolating external acoustic variables.
International Logistics & Compliance
This pneumatic instrument is designed for global institutional procurement and ministerial-level educational tenders. To ensure safe delivery, all units are housed in export-grade seaworthy crating (ISPM-15 compliant). Every shipment includes a Manufacturer’s Authorization Form (MAF), Certificate of Conformance, and a technical User Manual in English. The tropicalized design is specifically engineered for sustained performance in emerging markets, batch-tested for operational durability in high-humidity and high-temperature environments reaching up to 45°C and 90% RH.
Why Source from the OEM
Procurement directly from the OEM ensures vertical integration of quality control and long-term asset sustainability. Our facility utilizes in-house pressure testing and precision surface machining to guarantee that every aluminium plate meets exact flatness tolerances for airtight performance. Unlike third-party traders, we provide direct factory spares availability, including replacement piston seals, vacuum hoses, and stopcock valves. Our production line follows strict batch-testing for uniformity, ensuring each unit delivered to your institution adheres to the original technical design parameters required for high-stakes scientific instruction.
