Compass, Magnetic Plotting

Compass, Magnetic Plotting

Product Code : SCL-M-11890

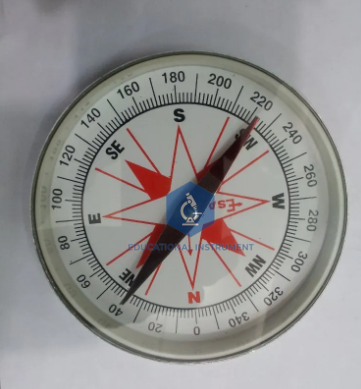

Quick Answer: The Compass, Magnetic Plotting is a small pivoted-needle compass in an aluminium or brass case with a glass or acrylic cover, for tracing magnetic field lines. It is made in 12 mm, 15 mm and 20 mm diameters.

Last updated: October 2026

Key Features

  • Hardened, magnetised steel needle on a pivot
  • Aluminium or brass housing with glass or acrylic cover
  • Dial with 8 direction markers
  • Available in 12 mm, 15 mm and 20 mm diameters

Technical Specifications

SpecificationValue
HousingAluminium or brass
CoverGlass or acrylic
NeedleHardened steel, magnetised, pivot-mounted
Dial8-point direction markers
Diameter12 mm, 15 mm or 20 mm

About This Product

A plotting compass is moved step by step around a magnet, with the needle direction marked at each position, to build up the shape of the field on paper. It is used this way with both bar and horseshoe magnets. Educational Instrument can arrange export supply of the Compass, Magnetic Plotting to Zambia, Sri Lanka, Tajikistan, Honduras, Guyana and Montenegro.

Frequently Asked Questions

What sizes does the Compass, Magnetic Plotting come in?

It is available in 12 mm, 15 mm and 20 mm diameters.

Related: Magnetism, Plotting Compass, Superior, Compass, Magnetic Plotting, Both Side Transparent and Magnetic Field Line Tube STEM Lab.

For a quotation on the Compass, Magnetic Plotting, contact Educational Instrument.
