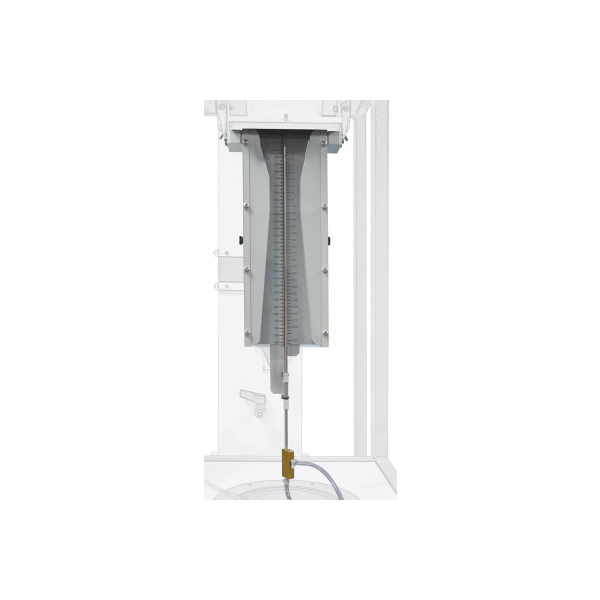

A clear scale printed on the duct helps to show the probe position.
This experiment module illustrates Bernoulli s equation as applied to a convergent-divergent duct.
A Pitot static tube measures both the total pressure and the static pressure independently.
Students confirm the constant total pressure while observing the rise and fall of the static pressure.
They compare the velocity-area ratio as calculated from Bernoulli equation to the experimental results.
The tube traverses along the axis of the duct and connects to the Manometer (ancillary) via flexible tubes fitted with quick-release couplings.
