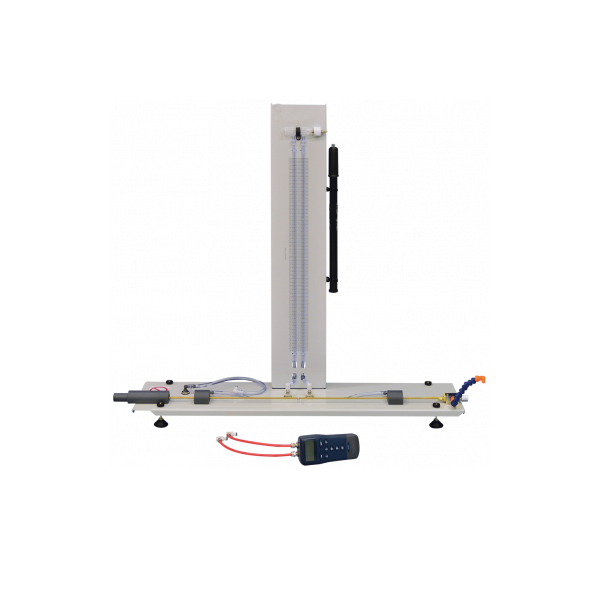

The Friction Loss in a Pipe apparatus allows students to study the change in the laws of resistance for laminar to turbulent flow and find the critical Reynolds number.
The equipment is a small-bore, straight test pipe on a base plate.
The back panel holds the manometer with calibrated scales.
Pressure meter measures higher pressures in the turbulent flow region.
The water manometer includes an air valve and hand-pump.
The hand-pump adjusts the datum of the water manometer where necessary.
A precision needle valve downstream of the test pipe accurately controls flow rate.
The water manometer measures lower differential pressures in the laminar and lower turbulent flow regions.
The apparatus shows the flow transition point from laminar to turbulent, and is ideal for demonstrations as well as student experiments.
Static pressure tapings upstream and downstream of the test pipe connect to a water manometer or a hand-held digital pressure meter.
