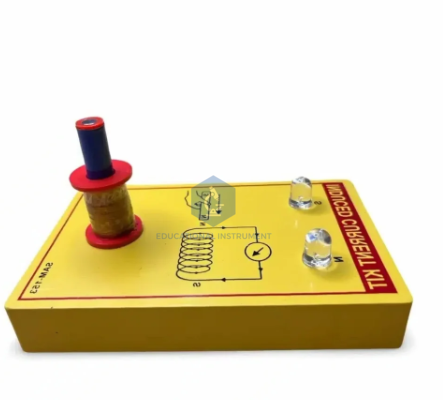

Induced Current Apparatus
.png)
Product Code : SCL-TMFEEL-12184
This educational instrument facilitates the empirical study of Faraday’s Law and electromagnetic induction within secondary and vocational physics curricula. Engineered for high-precision demonstrations, it enables the quantification of current induction via primary and secondary coil interactions. Compliant with international laboratory safety standards, it serves as a critical benchmark for foundational electrical engineering modules in institutional laboratories.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Coil Construction |
High-conductivity insulated copper windings on reinforced polymer bobbins |
|
Core Material |
Soft iron cylindrical core for optimized magnetic flux linkage |
|
Terminal Interface |
4mm shrouded safety sockets / universal binding posts |
|
Winding Ratio |
Differential turns ratio optimized for measurable induction at low voltages |
|
ISO Compliance Code |
ISO 9001:2015 (Manufacturing Quality Management) |
|
HS Code |
9023.00 (Instruments, apparatus and models, designed for demonstrational purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Concentric Dual-Coil Configuration. Outcome: Enables students to analyze the relationship between primary field generation and secondary current induction, supporting Electromagnetism Module .
Feature: Removable Soft Iron Core. Outcome: Facilitates empirical testing of magnetic permeability and its effect on flux density, reinforcing the "Evaluate" level of laboratory inquiry.
Feature: Open-Architecture Design. Outcome: Allows for direct visual inspection of coil density and orientation, aiding the conceptual transition from theoretical Lenz’s Law to physical application.
Feature: Low-Impedance Windings. Outcome: Ensures high sensitivity during galvanometer-based measurements, allowing for precise calculation of induced EMF relative to change in flux.
International Logistics & Compliance
All units are secured in export-grade seaworthy crating (ISPM-15 compliant) to maintain winding integrity and terminal calibration during multi-modal transit. Documentation packages provided with each consignment include the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive User Manuals in English. The instrument features a tropicalized design, validated for material stability and dielectric performance in environments up to 45°C and 90% non-condensing humidity.
Why Source from the OEM
Procuring directly from the manufacturer ensures vertical integration and adherence to technical tolerances required for repeatable experimental results. Our facility utilizes in-house precision winding and batch-testing for uniformity, ensuring that resistance and inductance metrics remain consistent across large-scale tender fulfillments. Direct factory sourcing guarantees the long-term availability of genuine spares and technical calibration data, securing the institutional investment against the obsolescence common with third-party traders.
