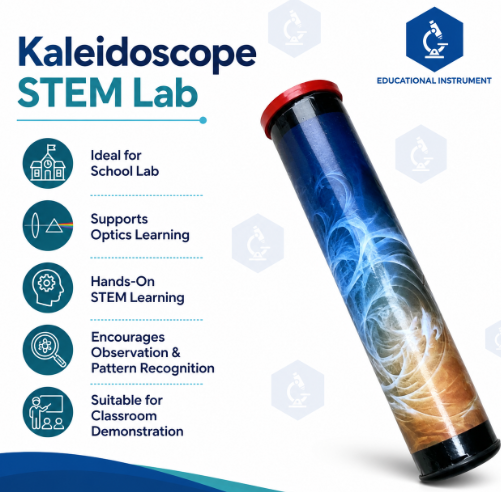

Kaleidoscope STEM Lab

Product Code : SCL-OS-12551

Introduce students to the captivating world of geometrical optics and repeating symmetry patterns with the professional Kaleidoscope STEM Lab Kit, precision-developed by Educational Instrument India. Purpose-built as an essential physics experiment for schools, science workshops, and institutional STEM laboratories, this advanced educational apparatus converts a familiar optical toy into a high-utility measurement device designed to study the fundamental laws of light reflection.

Unlike standard consumer toys, this lab-grade model features an accessible, modular structural configuration that exposes the core mirror tracking system. The unit is equipped with three parallel, high-grade front-surface silvered mirrors mounted inside an adjustable angular housing frame. By default, the mirrors are aligned symmetrically at exactly 60 degrees relative to each other, forming a perfect equilateral triangle chamber. When an object chamber containing colorful geometric glass fragments is rotated at the viewing terminal, the incident light rays obey the law of reflection  across all three planes concurrently. This creates infinite multiple-reflection path loops, forming striking, beautifully repeating hexagonal patterns known as mathematical tessellations.

Ideal for elementary science, secondary physics lessons, and advanced geometry classes, this kit provides a rigorous environment to test reflection formulas. With built-in index lines and an adjustable hinge tracking mechanism, students can manually vary the mirror alignment angles to observe firsthand how adjustments to spatial coordinates mathematically change the total number of symmetrical fragments displayed across the visual field.

Core Pedagogical and Technical Key Features:

Exposed Modular Track Assembly: The open structural casing allows students to quickly slide out mirrors, change geometric objects, and directly calculate angular parameters.

High-Fidelity Front-Surface Mirrors: Fitted with laboratory-grade front-coated mirrors to prevent ghost reflections and secondary refraction lines typical of standard rear-silvered household glass.

Adjustable Angular Framework: Features a mechanical hinge system with preset stops at 90°, 60°, and 45° to demonstrate how changing boundary angles alters radial symmetry.

Dual Chamber Versatility: Equipped with an object chamber for loose materials alongside an open teleidoscope front lens to transform any ambient target into a dynamic reflection pattern.

STEM Curriculum Mapping: Ideal for calculating image populations based on angular configuration formulas, studying rotational symmetry matrices, and tracing optical path vectors.

2. Product Specifications

3. How to Use the Kaleidoscope STEM Lab Kit

Ensure optimized laboratory instructional success by executing your experimental steps according to this standard scientific methodology:

Expert Lab Instruction Notice: Always work under ambient room lighting or near an indirect window light source. To protect the performance of your kit, never touch the mirror surfaces with bare fingers; skin oils can smudge the surface and degrade reflective efficiency.

Baseline Assembly & Calibration: Slide the three front-surface mirrors into the internal tracking slot paths. Adjust the hinge alignment locks to the standard 60-degree indicator position, confirming the mirrors form a neat equilateral triangular tube.

Loading the Object Chamber:

Attach the translucent object cylinder filled with geometric glass fragments onto the front receptor frame of the tube assembly.

Ensure the locking ring clicks firmly into position to prevent accidental spills during rotational testing.

Observing Symmetrical Reflection:

Hold the eyepiece shell near your eye and aim the kaleidoscope toward a bright wall or indirect light source.

Slowly rotate the front object cylinder. Note the dynamic generation of 6-fold radial symmetry. The image paths cross back and forth across the mirror planes, providing a practical demonstration of the Law of Reflection.

Varying Mirror Angles and Mathematical Validation:

Carefully loosen the track lock and shift the mirrors to a 90-degree configuration. Look through the eyepiece to confirm the pattern shifts to a 4-fold matrix.

Have students cross-verify their optical results using the foundational formula for image population between intersecting plane boundaries:

Where represents the precise interior angle. At 90°,images formed per single section loop.

4. Frequently Asked Questions (FAQs)

Q1: What is the benefit of using front-surface mirrors in this lab kit over normal household mirrors?A: Standard everyday mirrors feature a silver coating applied behind a thick sheet of clear glass. When light strikes a standard mirror at an angle, it creates an unwanted secondary reflection off the front surface of the glass before hitting the rear silver layer. In multiple reflection setups like a kaleidoscope, these "ghost images" stack up continuously, resulting in a blurry, out-of-focus final pattern. Educational Instrument India utilizes premium front-surface coatings so the light path reflects instantly off the top layer, ensuring perfectly crisp, high-fidelity visual alignment.

Q2: Why do the patterns change so drastically when we shift the tracking angle from 60 degrees to 90 degrees?A: The structural geometry of the reflection relies directly on how many times the interior angle divides perfectly into a full 360-degree rotation circle. An angle of 60 degrees divides evenly into 360 exactly six times producing a repeating, uniform hexagonal lattice pattern with zero visual gaps. When you shift the angle to 90 degrees, it divides into 360 exactly four times, creating a square grid matrix. If you choose an unindexed angle that doesn't divide evenly into 360 (like 70 degrees), the visual reflections will overlap awkwardly, breaking the fluid symmetry.

Q3: How do we transition this kit from a standard kaleidoscope into a teleidoscope model?A: The conversion process is straightforward and tool-free. Simply detach the front translucent object cylinder by unscrewing the retaining cap, and slide the clear optical spherical ball lens into the open track. Instead of reflecting loose beads inside the chamber, the telescope configuration now uses your surrounding environment—such as trees, brickwork, or laboratory charts—as the geometric target source, refracting ambient objects into symmetrical patterns.

Q4: What are the best cleaning practices for keeping the internal optics free of dust?A: If airborne dust or lint particles settle inside the mirror chamber, avoid using rigid brushes or rough paper cloths that can permanently scratch the delicate front silver plating. Use a standard rubber air-blower bulb to clean the internal track paths. For stubborn smudges, apply a small drop of optical lens cleaning solution to a lint-free microfiber cloth and wipe gently in a straight path along the mirror surfaces.
