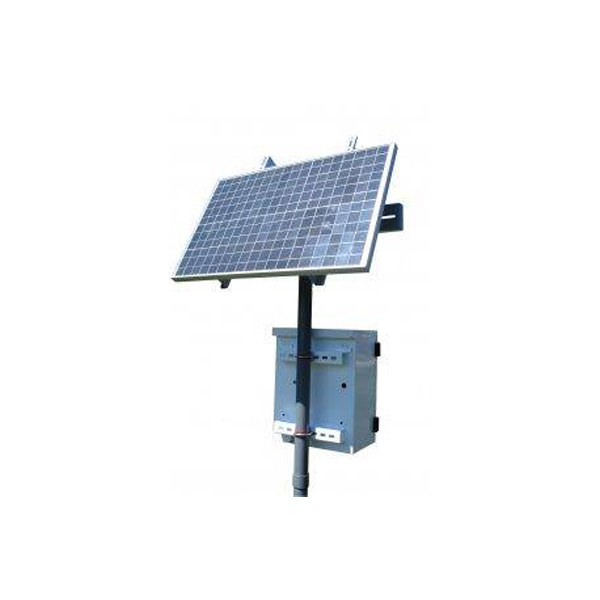

Solar Power System
Product Code : EL-CE-10742
Quick Answer: The Solar Power System is a heavy duty kit for permanent installations, built around 4 x 50 W solar electric modules and 2 x maintenance free 12 V batteries. It provides direct or back-up power for uses such as a complete radio room or a remote repeater site.
Last updated: October 2026
Key Features
- 4 x 50 W solar electric modules, mounted electrically in parallel
- 2 x maintenance free 12 V, 120-125 Ah batteries connected in parallel to the charge regulator
- Battery box and heavy duty aluminium support structure with adjustable elevation
- Heavy-duty cable from the panels to the charge regulator
- All required installation material included: cabling, nails and plugs
Technical Specifications
| Specification | Value |
|---|---|
| Solar modules | 4 x 50 W, connected in parallel |
| Batteries | 2 x 12 V, 120-125 Ah, maintenance free, connected in parallel |
| Support structure | Aluminium, heavy duty, adjustable elevation |
| Included | Battery box, charge controller, heavy-duty cable, cabling, nails and plugs |
| Application | Direct or back-up power for a radio room or remote repeater site |
About This Product
A fixed solar installation like this keeps radio and communication equipment running where grid power is absent or unreliable. The panels go on a rooftop or another secure spot with a direct view of the sun, the support elevation is set to face the panels towards it, and the aluminium frame must be properly grounded. Educational Instrument can dispatch the Solar Power System to laboratories in Guinea-Bissau, Sudan, Mexico, Malta, Albania and Mongolia.
Frequently Asked Questions
Where should the Solar Power System panels be installed?
On a rooftop or another suitable and secure location with a direct view of the sun, with the support elevation adjusted for solar power.
How are the panels maintained?
Clean the panels with water and a soft brush at regular intervals.
Related: Communication Equipment, Battery, Gel-Cell, Radio Manpack Kit and Solar Lamp with Phone Charger.
For a quotation on the Solar Power System, contact Educational Instrument.
