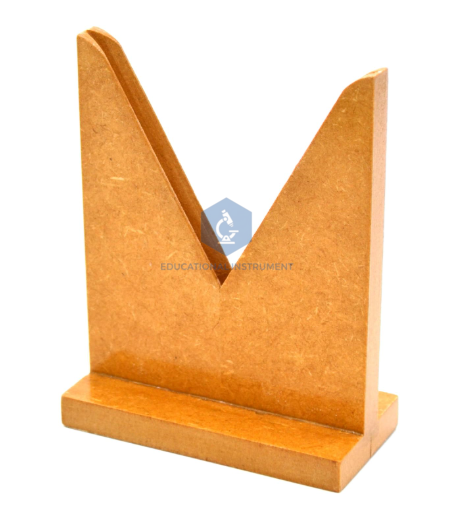

Lens Holder V Shape Wooden
.png)
Product Code : SCL-OS-12269
The StemAids V-Shape Wooden Lens Holder is a precision-machined optical support engineered for the stable mounting of convex/concave lenses and mirrors. Optimized for secondary and vocational physics laboratories, it features a self-centering V-groove architecture and laser-engraved index marks. This instrument provides an objective platform for focal length determination and image formation experiments within standard optical bench frameworks.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Finished Seasoned Hardwood with Anti-Warp Properties |
|
Mounting Architecture |
Integrated V-Groove for Self-Centering Alignment |
|
Component Compatibility |
Accommodates Lenses and Mirrors up to 76mm Diameter |
|
Dimensions |
5″ x 3.75″ x 1.87″ (approx. 127mm x 95mm x 47mm) |
|
Indexing Features |
Engraved Dual-End Baseline Reference Marks |
|
Geometric Compatibility |
Supports both Concave and Convex Spherical Optics |
|
ISO Compliance Code |
ISO 9001:2015 Manufacturing Standards |
|
HS Code |
9023.00 (Instruments and apparatus designed for demonstrational purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy Alignment)
Feature: Engraved End-Point Index Marks Outcome: Facilitates student acquisition of high-precision bench readings, supporting Optics Module 102 (Linear Measurement and Error Calculation).
Feature: Universal 76mm V-Slot Outcome: Enables student manipulation of varying optical geometries (Lenses vs. Mirrors), allowing for the comparative analysis of reflection and refraction laws.
Feature: Self-Centering Wood Block Construction Outcome: Ensures systemic optical axis alignment, fostering student capability to establish repeatable experimental conditions for focal length verification.
International Logistics & Compliance
StemAids maintains high OEM readiness for global institutional supply chains and international tender fulfillment:
Packaging: Export-grade seaworthy crating (ISPM-15 compliant); units are bulk-packed with desiccant inserts to preserve wooden structural integrity during maritime transit.
Documentation: Includes Manufacturer’s Authorization Form (MAF), Certificate of Conformance (CoC), and User Manuals in English.
Durability: Tropicalized wood finish tested for resistance to fungal growth and warping in high-humidity laboratory climates (up to 45°C/90% Humidity).
Direct OEM Sourcing Advantages
StemAids establishes definitive factory-direct authority through vertical integration of optical accessory manufacturing:
In-House Precision Calibration: V-grooves are milled to exact parallel tolerances to ensure that optics remain perpendicular to the bench axis.
Batch-Tested for Uniform Reliability: Every production lot is inspected for dimensional consistency and finish quality to ensure snag-free sliding on standard optical rails.
Direct Factory Spares Availability: Guaranteed availability of specialized clamping accessories and replacement indexed bases to ensure long-term laboratory utility.
