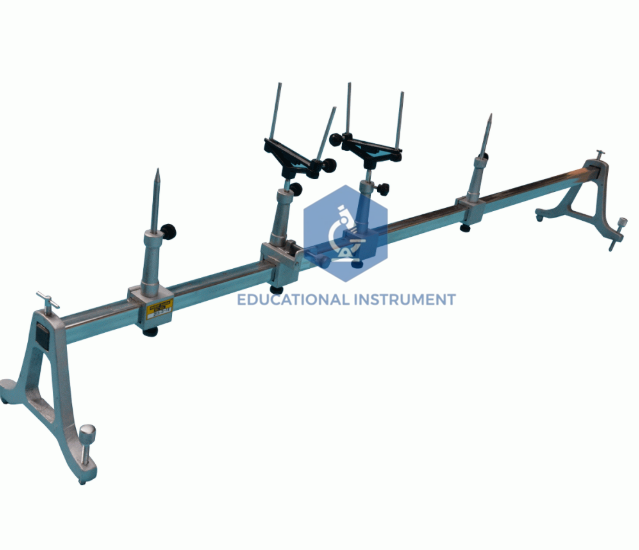

Optical Bench Single Rod
.png)
Product Code : SCL-OS-12219
Engineered for precise linear optical path measurement, this single-rod bench facilitates the empirical determination of focal lengths and image formation properties. Optimized for University and Secondary laboratory environments, it supports standardized experiments in geometric optics. The unit features graduated scale calibration and ruggedized sliding mounts for repeatable data acquisition in high-usage instructional settings.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Chrome-Plated Steel Rod / Cast-Iron Support Pillars |
|
Graduation Range |
0 to 1000mm (Precision Millimeter scale) |
|
Mounting System |
Universal Sliding Riders for Lenses, Mirrors, and Object Pins |
|
Stability Profile |
Heavy-Duty Die-Cast Leveling Base |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
9023.00.00 (Instruments/Models for Demonstrational Purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Graduated linear track. Outcome: Facilitates high-precision measurement of object and image distances, supporting "Analyze" level objectives in Wave Optics modules.
Feature: Adjustable optical riders. Outcome: Allows students to configure multi-element lens systems, enabling the "Evaluate" stage of the Thin Lens Equation and magnification theory.
Feature: Leveling base and rigid rod support. Outcome: Ensures optical axis alignment across the entire bench length, preventing parallax errors during "Apply" level data collection and experimental validation.
International Logistics & Compliance
All units are processed for international distribution using export-grade seaworthy crating (ISPM-15 compliant). Standard procurement documentation includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive English-language User Manuals. The bench is built with a tropicalized design, featuring corrosion-resistant plating tested for sustained operational stability in environments up to 45°C and 90% Humidity, ensuring longevity in diverse climates.
Why Source from the OEM
Sourcing directly from the OEM ensures total vertical integration, from the extrusion of the graduated rod to the precision machining of the sliding mounts. Every Optical Bench is batch-tested for linearity and scale accuracy to eliminate experimental variance across classroom sets. Direct factory procurement guarantees continuous spares availability, in-house metallurgical verification, and engineering-level support for large-scale institutional tenders, ensuring superior durability over third-party alternatives.
