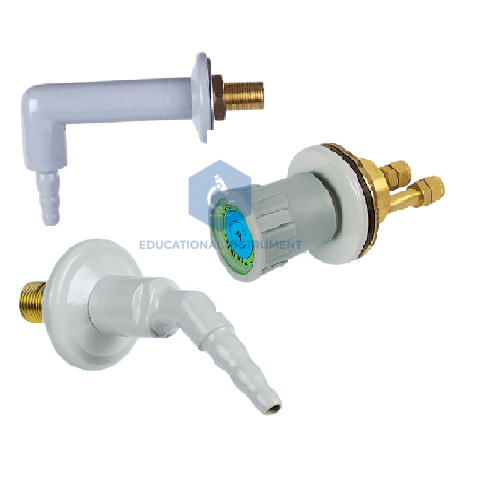

Panel Mounted Valve, 45° Nozzle & 90° Elbow for Fume Hood
.png)
Product Code : SCL-WDF-11691
Engineered for integrated service distribution within fume cupboards, this panel-mounted nozzle facilitates calibrated fluid or gas delivery. Adhering to DIN 12898 and ISO 9001:2015 standards, the fixture is optimized for University research blocks and Vocational (TVET) pharmaceutical laboratories. Its ruggedized 45° discharge and 90° elbow orientation ensure ergonomic service management and chemical resilience in high-occupancy clinical and scientific environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Heavy-duty Forged Brass with High-Micron Chemical Resistant Epoxy Coating |
|
Configuration |
45° Discharge Nozzle with 90° Internal Elbow Panel Mount |
|
Mounting Interface |
Threaded Panel Shank with anti-rotation lock nut |
|
Interface Threading |
G 1/2" (15mm) Male Threaded Inlet |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
8481.80.90 (Taps, cocks, and valves for laboratory distribution) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: 45° Angular Discharge Nozzle. -> Outcome: Facilitates precision fluid transfer into specialized narrow-necked volumetric glassware, supporting the "Apply" level of Analytical Chemistry Module 202.
Feature: Integrated 90° Elbow Panel Mount. -> Outcome: Minimizes internal fume hood clutter, allowing students to evaluate and optimize safe workspace ergonomics during volatile reagent synthesis.
Feature: Chemical-Resistant Ruggedized Finish. -> Outcome: Resists oxidation and surface degradation from acidic/alkaline vapors, enabling learners to analyze and maintain institutional safety standards in Vocational Laboratory Management.
International Logistics & Compliance
Our global export infrastructure is optimized for ministry-level tenders and large-scale institutional fulfillment. Consignments are secured in export-grade seaworthy crating (ISPM-15 compliant) to maintain thread integrity and finish protection during multi-modal transit. Documentation provided with each shipment includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification templates upon request, and comprehensive technical installation schematics in English. The hardware features a tropicalized design, specifically tested for mechanical actuation and finish durability in environments reaching 45°C and 90% non-condensing humidity, ensuring long-term utility in diverse geographical climates.
Why Source from the OEM?
Procuring directly from the OEM ensures total Vertical Integration over the manufacturing process, effectively eliminating technical variance found in generic commercial hardware. Our facility manages the entire production cycle—from in-house metallurgical forging and precision CNC milling to the application of specialized chemical-resistant epoxy finishes. Every unit is batch-tested for uniformity in pressure retention and mechanical cycle endurance to ensure zero-leak performance within critical air-handling units. We guarantee direct factory spares availability, including internal valve seats and mounting gaskets, providing institutional buyers with a 10-year support window and eliminating the operational risks associated with non-standardized third-party components.
