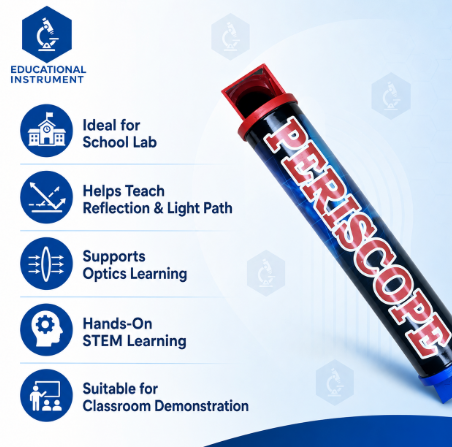

Periscope STEM Lab

Product Code : SCL-OS-12550

Empower students to look over barriers and trace light paths from hidden vantage points using the professional-grade Periscope STEM Lab Kit, proudly manufactured by Educational Instrument India. Engineered specifically to meet the high pedagogical demands of academic physics labs, institutional science modules, and secondary school physics practicals, this premium ray optics kit bridges theoretical geometry with tangible physical experimentation.

Unlike standard pre-built toy periscopes encased in opaque plastic, this STEM platform features an innovative, transparent side-panel chassis coupled with adjustable angular mirror mounting plates. The apparatus incorporates two high-reflectivity front-surface plane mirrors positioned at opposite terminals of a vertical column. By manipulating the built-in precision index dials, students can precisely align the mirrors at the foundational 45-degree angle. Incoming parallel light rays strike the upper mirror at a 45-degree angle of incidence, reflecting downward along the inner column at an identical 45-degree angle of reflection according to the classical law of reflection The rays then meet the lower parallel mirror, turning another 90 degrees directly into the observer's eye. This dual-plane alignment delivers a perfectly straight, un-inverted, and crisp image from behind any obstruction.

This laboratory equipment kit serves as a foundational platform for assessing optical vectors, evaluating blind-spot angles, and studying naval or industrial submarine engineering frameworks. With built-in angular protractor markings at both mirror brackets, instructors can introduce comprehensive variables—such as misaligned configurations—to challenge students to trace distorted rays and mathematically evaluate why a true 45-degree orientation is mandatory for collinear vision alignment.

Core Pedagogical and Technical Key Features:

See-Through Structural Chassis: Crafted with crystalline, high-durability acrylic side walls that expose the entire inner light path corridor, allowing students to visualize trace reflections directly.

Laboratory-Grade Front-Surface Mirrors: Equipped with optical mirrors where the reflective coating sits directly on the glass surface, eliminating double reflection artifacts ("ghost images") for maximum clarity.

Integrated Angular Protractor Mounts: Features precise mechanical dials with locking screws that permit mirror adjustments from 30° to 60° to demonstrate error analysis in ray tracking.

Modular Height Extension Tracks: Outfitted with an easy-to-assemble slide locking connector system, allowing students to alter the vertical periscope height to evaluate visual field-of-view contraction.

Comprehensive STEM Integration: Perfectly maps to classroom units detailing wave phenomena, plane vector reflections, parallel optical axes, and historical submarine navigation mechanics.

2. Product Specifications

3. How to Use the Periscope STEM Lab Kit

Optimize physics lab performance and guarantee crisp visual data acquisition by systematically executing these structural configuration guidelines:

CRITICAL LAB SAFETY WARNING: Never point the periscope optics assembly toward the sun or attempt to track direct laser emissions. Looking at intense radiant energy sources through mirrored apparatuses risks instant, irreversible thermal damage to retinal tissues.

Assembling the Structural Columns: Slide the upper and lower terminal housing caps onto the central clear acrylic vertical channel. Secure the column framework into the provided table-clamping base mount to prevent hand-shake vibrations during measurement calculations.

Calibrating the Optical Mirrors: Loosen the thumb adjustment screws on both the upper and lower mirror bracket fixtures.

Carefully swing the internal mirror assemblies until their integrated index arrows point exactly to the 45-degree marking line on the outer protractor scale.

Retighten the thumb screws gently to lock the planes in a perfect parallel relationship.

Target Acquisition & Line-of-Sight Path Testing:

Set up an opaque obstacle (such as a large textbook or wooden partition) directly in front of the lower viewing port.

Position your eye approximately 2-3 cm from the lower window and aim the top portal over the barrier toward a brightly lit, high-contrast target object across the laboratory.

Notice that the image resolves perfectly upright and un-inverted, proving that the second mirror effectively compensates for the initial spatial inversion created by the first mirror surface.

Verifying Vector Deviations (The STEM Experiment):

Challenge students to adjust the upper mirror dial slightly away from the 45-degree threshold (e.g., setting it to 50°).

Observe how the objective image instantly slips out of view, replaced by the darkened inner walls of the plastic casing.

Have students trace the laser pointer beam down the tube to verify the geometric angle equation:

Where is the deviation error from 45°. This proves that even a minute 5° alignment error introduces a massive 10° path deviation, completely disrupting the parallel optical axis line.

4. Frequently Asked Questions (FAQs)

Q1: Why does a periscope preserve an upright, normal image while a telescope flips it upside down?

A: Telescopes rely on curved lenses that converge incoming light rays to a focal cross-over point, reversing the top-to-bottom orientation of the image. A standard periscope utilizes flat plane mirrors that redirect light rays without forcing them through a focal inversion point. The first mirror flips the orientation backward along the vertical column, and the second mirror immediately performs an equal and opposite transformation, canceling the distortion and delivering an upright, anatomically correct image to your eye.

Q2: What is the specific architectural advantage of front-surface mirrors in this physics kit?

A: Standard consumer-grade household mirrors feature a metallic reflective coating sprayed onto the back side of thick glass. When used in precision optics, a small percentage of incoming light reflects off the front edge of the glass sheet before reaching the back silver layer, creating a distracting secondary shadow image or "ghost reflection." Educational Instrument India builds its STEM labs using premium front-surface mirrors—where the reflective silver compound is vapor-deposited onto the outer face—guaranteeing single-line reflections, higher optical brightness, and zero refraction interference during ray tracing experiments.

Q3: Can this Periscope Lab Kit be used to run liquid refraction or underwater optical tracking trials?

A: While this kit perfectly simulates the core optical principles behind a submarine's periscope system, it is designed strictly as a dry bench apparatus for desks and physics tables. The open mechanical dial adjustments, transparent acrylic housings, and sliding extension channels are not watertight. Submerging the unit under water will trap liquid film on the front-surface mirror coatings, causing mineral spots and diminishing the reflective efficiency of the silver compound.

Q4: How should students clean the mirror elements to prevent permanent abrasions?

A: Front-surface reflective layers are highly sensitive because they lack a protective outer glass barrier. Never use standard window sprays, coarse paper towels, or hard cotton swabs to clean them. Use a rubber air-blower bulb to clear away loose laboratory dust. If fingerprints or oils smudge the mirror face, apply a single drop of high-purity isopropyl alcohol or specialized camera lens cleanser to an optical-grade microfiber cloth, and lightly drag it across the glass surface in a single, unidirectional sweep.
