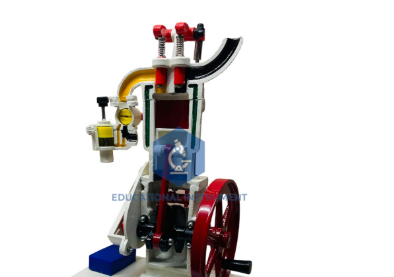

Petrol Engine Model Four Stroke
.png)
Product Code : SCL-TMFEEL-12177
This Educational Instrument provides a high-fidelity sectional analysis of the Otto cycle and reciprocating internal combustion. Engineered for University-level automotive engineering and Vocational Technical Education (TVET) laboratories, it facilitates the empirical study of spark-ignition timing, valve synchronization, and kinematic energy conversion. The model is calibrated to international technical instruction standards, ensuring mechanical accuracy for high-use institutional environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
System Configuration |
Four-stroke, spark-ignition simulation (Sectional) |
|
Material Grade |
Ruggedized cast alloy frame with impact-resistant aluminum components |
|
Mechanical Interface |
Hand-cranked flywheel for manual cycle regulation and observation |
|
Valve Mechanism |
Synchronized overhead valve (OHV) assembly driven by internal camshaft |
|
Ignition Simulation |
Integrated LED/light indicator synchronized to the compression stroke peak |
|
ISO Compliance Code |
ISO 9001:2015 (Manufacturing Quality Management) |
|
HS Code |
9023.00 (Instruments, apparatus and models for demonstrational purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Synchronized Camshaft and Crankshaft Linkage. Outcome: Facilitates the analysis of mechanical synchronization and valve timing diagrams, supporting Kinematics Module 301.
Feature: Simulated Spark Ignition Timing (LED). Outcome: Demonstrates the combustion event relative to Top Dead Center (TDC), enabling students to calculate ignition lag and thermal expansion phases .
Feature: Sectional Cutaway of Cylinder and Piston. Outcome: Provides visual verification of reciprocating-to-rotary motion conversion, aiding in the comprehension of mechanical torque transfer.
Feature: Color-Coded Intake and Exhaust Manifolds. Outcome: Assists in identifying gas exchange pathways and fluid flow directions within the combustion chamber during the four-stroke sequence.
International Logistics & Compliance
To ensure the protection of high-tolerance mechanical linkages and electrical timing during multi-modal transit, this Educational Instrument is secured in export-grade seaworthy crating (ISPM-15 compliant). The procurement package is delivered with a Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical User Manuals in English. The unit features a tropicalized design, utilizing oxidation-resistant alloys and non-degrading polymers tested for sustained operational integrity in environments reaching 45°C and 90% humidity.
Why Source from the OEM
Procuring from the Original Equipment Manufacturer ensures vertical integration across the fabrication process, from the precision casting of the cylinder block to the high-tolerance machining of the cam profiles. Unlike third-party traders, our facility provides batch-tested uniformity in gear mesh tolerances and electrical contact timing. Direct factory engagement guarantees institutional long-term viability through immediate spares availability and consistent specification matching for large-scale tender fulfillments.
