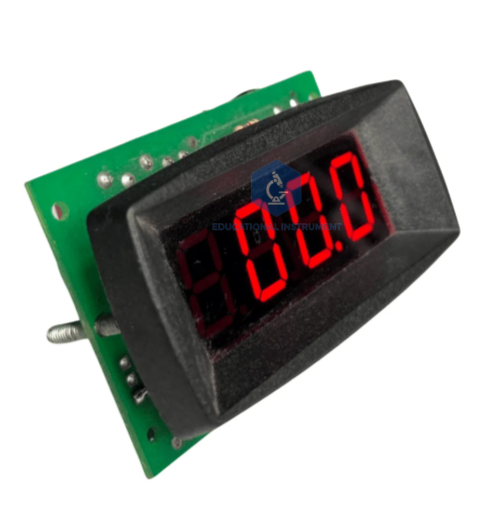

Quick Answer: The Digital LED Panel Meter is a 3.5-digit panel module for showing DC voltage or DC current on power supplies and circuit trainers, with 13 mm characters and ±0.5% FSD accuracy. It runs from a 9 V DC battery.
Last updated: October 2026
Key Features
3.5-digit display with 13 mm character height
DC voltage or DC current versions
Accuracy ±0.5% of full-scale deflection
Input impedance above 10 Mohm in voltmeter form
Clip-in panel bezel; ABS housing
Powered from a 9 V DC battery
Technical Specifications
Specification
Value
Measurement
DC voltage or DC current (by model)
Display
3.5 digit, 13 mm characters
Accuracy
±0.5% FSD
Input impedance
>10 Mohm (voltmeter)
Reading rate
2–3 readings per second
Power
9 V DC battery
Mounting
Panel bezel, clip-in
Housing
ABS
About This Product
A digital panel meter adds a clear numeric readout to a home-built power supply, trainer board or test jig. Engineering and electronics students fit it when building circuits so they can read output voltage or load current directly. Educational Instrument can arrange export supply of the Digital LED Panel Meter to Iceland, Belgium, South Africa, Kenya and Estonia.
