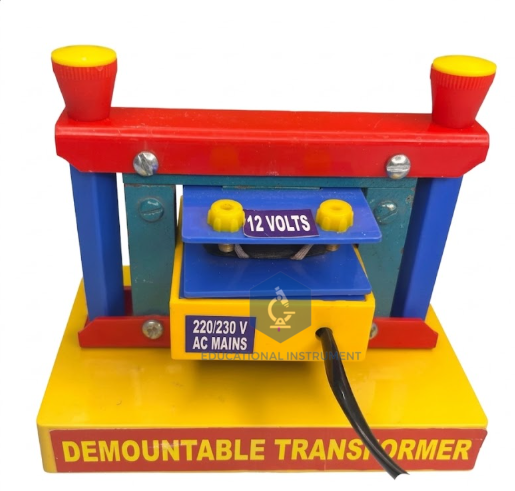

Quick Answer: The Electrical Transformer Model shows how a transformer steps mains voltage down by mutual induction, taking 220-240V AC on the primary and giving 6V and 12V AC from secondary taps. It has enamelled copper windings on a laminated soft iron core.
Last updated: October 2026
Key Features
Primary input 220-240V AC, 50/60Hz
Secondary taps at 6V and 12V AC
Enamelled copper windings
Laminated soft iron core
4mm shrouded sockets on the secondary
Mounted on an insulated base
Technical Specifications
Specification
Value
Primary input
220-240V AC, 50/60Hz
Secondary taps
6V and 12V AC
Windings
Enamelled copper
Core
Laminated soft iron
Secondary terminals
4mm shrouded sockets
Base
Impact-resistant, insulated
About This Product
Students measure the voltage at each secondary tap and relate it to the number of turns, seeing Faraday’s law and mutual induction at work. The laminated core helps explain why transformers are built from thin sheets rather than solid iron.
Frequently Asked Questions
What outputs does the transformer model give?
Its secondary has taps at 6V and 12V AC from a 220-240V AC supply.
