Kinetic Theory Model STEM Lab
Product Code : SCL-MH-12540

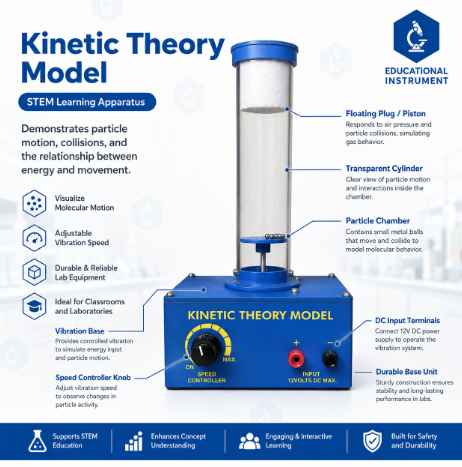

Quick Answer: The Kinetic Theory Model simulates gas molecules with steel and polymer balls agitated by a variable-speed vibrating base inside a clear acrylic cylinder. A floating graduated piston shows how volume and pressure respond to changes in “temperature”.
Last updated: October 2026
Key Features
- Variable-speed DC motor drive with speed control knob
- Clear acrylic cylinder for viewing from all sides
- Floating, graduated compression piston for changing volume
- 50 small steel, 50 large steel and 20 lightweight polymer balls
- 12V DC input with AC/DC adapter included
- Powder-coated steel base with rubber feet
Technical Specifications
| Specification | Value |
|---|---|
| Chamber | Acrylic cylinder |
| Drive | Low-voltage DC motor with speed potentiometer |
| Power | 12V DC, AC/DC adapter included |
| Simulated molecules | 50 small steel, 50 large steel, 20 lightweight polymer balls |
| Piston | Floating, graduated compression disk |
| Base | Powder-coated steel with rubber dampening feet |
About This Product
At low speed the balls jiggle close together like a cool gas; at high speed they fly about the whole chamber. Holding the speed steady and pushing the piston down makes collisions with it more frequent, illustrating Boyle’s law, while letting the piston float and raising the speed lifts it, illustrating Charles’s law. Mixing light and heavy balls shows how molecules of different mass behave at the same energy.
Frequently Asked Questions
How is temperature represented in the Kinetic Theory Model?
By the speed of the vibrating base. Turning the speed knob up gives the balls more kinetic energy, like heating a gas.
How is Boyle’s law shown?
Keep the vibration speed constant and push the floating piston down; the smaller volume brings more frequent collisions on the piston, representing higher pressure.
Related: Mechanics & Heat and Viscosity Tube Model STEM Lab.
For a quotation on the Kinetic Theory Model STEM Lab, contact Educational Instrument.
