Magnetic Field Along Straight Conductor

Product Code : SCL-M-12426

Magnetic Field Along Straight Conductor by Educational Instrument is a physics laboratory apparatus designed to demonstrate the magnetic field produced around a straight current-carrying conductor. It is widely used in school physics labs, college practical rooms, STEM laboratories, and classroom demonstrations for teaching the relationship between electric current and magnetism.

This apparatus helps students understand that when electric current passes through a straight conductor, a circular magnetic field is produced around it. The direction of the magnetic field can be observed using a compass needle and explained with the right-hand thumb rule. It is suitable for lessons on electromagnetism, magnetic field direction, current-carrying conductors, and basic principles related to Oersted’s experiment.

Product Description

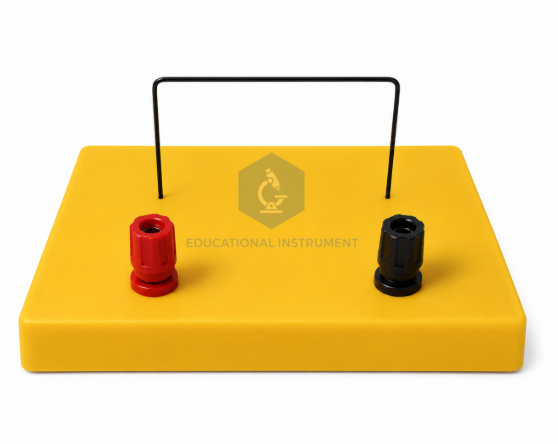

The Magnetic Field Along Straight Conductor apparatus generally consists of a straight conducting wire mounted on a stable insulated base with red and black terminals for electrical connection. When connected to a suitable low-voltage DC power supply, current flows through the conductor and produces a magnetic field around it.

A compass box or magnetic needle can be placed near the conductor to observe the direction of the magnetic field. By reversing the current direction, students can observe the reversal of compass deflection, making the apparatus highly useful for practical demonstration of electromagnetic principles.

Educational Instrument offers this apparatus for structured laboratory teaching, practical experiments, STEM demonstrations, and institutional physics lab setups.

Product Specifications

How to Use Magnetic Field Along Straight Conductor

Place the apparatus on a stable laboratory table.

Keep the setup away from strong magnets, iron objects, and electrical interference.

Connect the red and black terminals to a suitable low-voltage DC power supply.

Place a compass box near the straight conductor.

Switch on the current and observe the deflection of the compass needle.

Note the direction of deflection and relate it to the direction of current.

Reverse the current direction and observe the change in compass needle deflection.

Record observations in the lab notebook.

Switch off the power supply after completing the experiment.

Educational Applications

Demonstrates magnetic field around a current-carrying straight conductor.

Helps explain the right-hand thumb rule.

Useful for teaching Oersted’s experiment.

Supports practical study of electricity and magnetism.

Suitable for STEM-based classroom demonstrations.

Helps students understand current direction and magnetic field direction.

Useful for physics practical exams and laboratory training.

FAQ

Q1. What is the Magnetic Field Along Straight Conductor apparatus used for?
It is used to demonstrate the magnetic field produced around a straight conductor when electric current flows through it.

Q2. Is this apparatus suitable for school physics laboratories?
Yes, it is suitable for school labs, college labs, STEM labs, and classroom demonstrations.

Q3. What power supply is required?
A suitable low-voltage DC power supply is generally used according to the laboratory setup.

Q4. Which physics principle does this apparatus demonstrate?
It demonstrates the magnetic effect of electric current, right-hand thumb rule, and Oersted’s experiment.

Q5. Can the direction of magnetic field be observed?
Yes, the direction can be observed using a compass needle placed near the straight conductor.
