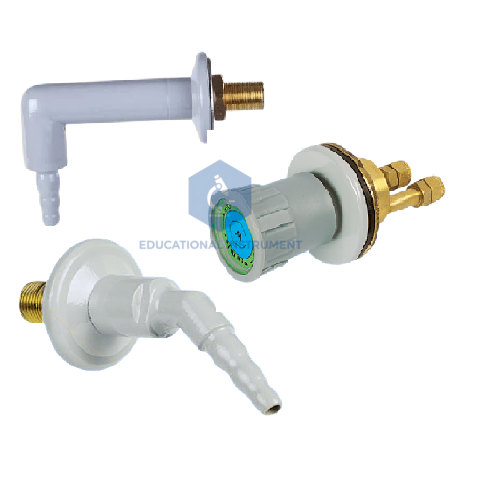

Panel Mounted Valve, 45° Nozzle & 90° Elbow for Fume Hood

Panel Mounted Valve, 45° Nozzle & 90° Elbow for Fume Hood

Product Code : SCL-WDF-11691

Quick Answer: The Panel Mounted Valve, 45° Nozzle & 90° Elbow for Fume Hood delivers a fluid or gas service inside a fume cupboard through a 45° nozzle on a 90° internal elbow. It is forged brass with chemical-resistant epoxy coating and a G 1/2" (15mm) male threaded inlet.

Last updated: October 2026

Key Features

  • 45° discharge nozzle on a 90° internal elbow
  • Mounts through the fume hood panel
  • Threaded panel shank with anti-rotation lock nut
  • Forged brass with chemical-resistant epoxy coating
  • G 1/2" (15mm) male threaded inlet

Technical Specifications

SpecificationValue
MaterialForged brass, chemical-resistant epoxy coating
Configuration45° discharge nozzle, 90° internal elbow
MountingThreaded panel shank with anti-rotation lock nut
InletG 1/2" (15mm) male thread
HS code8481.80.90

About This Product

The valve brings a water or gas service through the panel of a fume hood, and the angled nozzle keeps the connection within easy reach inside the cupboard. The lock nut stops it turning in the panel when the valve is operated. Enquiries from Turkmenistan, Philippines, Mali, Trinidad and Tobago, Iran and Qatar for the Panel Mounted Valve, 45° Nozzle & 90° Elbow for Fume Hood receive an export quotation.

Frequently Asked Questions

What inlet thread does the fume hood panel valve use?

A G 1/2" (15mm) male threaded inlet.

Related: Water Distribution Fittings, Pure Epoxy Scaffold for Fume Hood, Duct Damper for Fume Hood and Oval Sink & Cup Sink for Fume Hood.

For a quotation on the Panel Mounted Valve, 45° Nozzle & 90° Elbow for Fume Hood, contact Educational Instrument.
