Solar Cell Characteristics Apparatus
.png)
Product Code : SCL-EI-12136

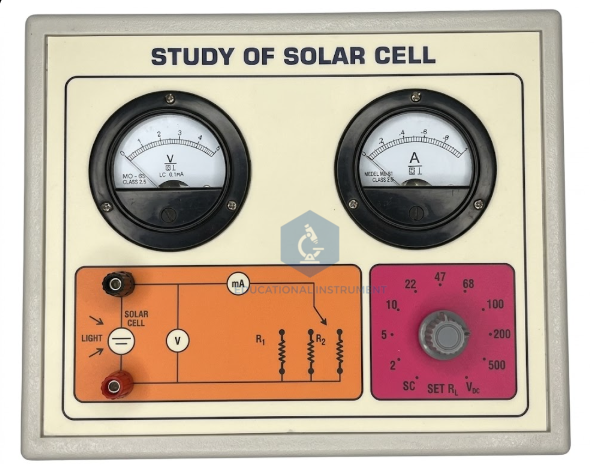

The Solar Cell Characteristics Apparatus is a high-precision instrumentation module engineered for the empirical analysis of photovoltaic conversion efficiency. Designed for University and Vocational technical laboratories, it facilitates the quantification of Fill Factor, maximum power point (Pmax), and efficiency under varying load conditions. This calibrated educational instrument complies with ISO 9001:2015 quality management standards for renewable energy research.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Integrated Photovoltaic Module |
Multi-crystalline/Mono-crystalline silicon cell mounted on adjustable stand |
|
Instrumentation (Voltage) |
Analog/Digital Voltmeter; Range 0 – 1V / 10V DC |
|
Instrumentation (Current) |
Analog/Digital Ammeter; Range 0 – 10mA / 100mA DC |
|
Variable Load Subsystem |
Integrated Decade Resistance Box or Potentiometric Load |
|
Illumination Interface |
Compatible with standardized halogen or LED solar simulators |
|
Interface Port |
4mm Shrouded Color-Coded Safety Sockets |
|
Panel Construction |
High-Insulation Bakelite with Silk-Screened Circuit Schematic |
|
Dimensions |
310mm x 200mm (Standard Trainer Size) |
|
ISO Compliance Code |
ISO 9001:2015 Quality Management System |
|
HS Code |
9023.00.10 |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Integrated Variable Load Resistance. Outcome: Enables students to "Analyze" the relationship between terminal voltage and load current to determine the Maximum Power Point (MPP).
Feature: Calibrated Dual-Range Metering. Outcome: Facilitates the "Evaluation" of solar cell performance under varying light intensities, supporting Renewable Energy Module 202.
Feature: Open-Architecture Connection Sockets. Outcome: Allows students to "Construct" series and parallel photovoltaic configurations, validating theoretical power summation models through empirical data acquisition.
International Logistics & Compliance
This educational instrument is dispatched in export-grade seaworthy crating (ISPM-15 compliant) to ensure the integrity of photovoltaic sensors and analog meters during multi-modal transit. Every shipment includes a Manufacturer’s Authorization Form (MAF), serialized IQ/OQ/PQ certification, and comprehensive technical user manuals in English. The hardware features a tropicalized internal architecture, batch-tested for operational stability in ambient temperatures up to 45°C and 90% non-condensing humidity, ensuring longevity in diverse global climates.
Why Source from the OEM
Procuring directly from the Original Equipment Manufacturer ensures total vertical integration of the production cycle, from in-house photovoltaic cell characterization to the final calibration of the metering subsystem. Unlike third-party traders, our facility provides direct factory spares availability and dedicated technical support, significantly lowering the Total Cost of Ownership (TCO). Every instrument is batch-tested for uniformity, ensuring that institutional tenders receive standardized, high-performance units for consistent curriculum delivery across multiple laboratory environments.
