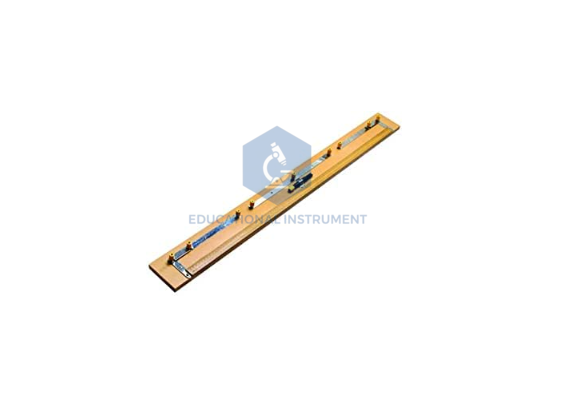

Quick Answer: The Wheatstone Bridge Apparatus is a meter bridge for finding unknown resistance and specific resistivity. It has a 1.0 metre bridge wire of 24 SWG over a 0–100 cm scale on a polished hardwood base.
Last updated: October 2026
Key Features
Seasoned, polished hardwood base
Brass connecting blocks with low-resistance contacts
Bridge wire 24 SWG, 1.0 metre long
Four gaps for bridge circuits
Scale 0–100 cm with 1.0 mm graduations, inset in the base
4mm binding posts
Technical Specifications
Specification
Value
Base
Seasoned polished hardwood
Connecting blocks
Brass
Bridge wire
24 SWG, 1.0 metre
Gaps
4
Scale
0–100 cm, 1.0 mm resolution
Binding posts
4mm
About This Product
A meter bridge applies the Wheatstone bridge principle along a single wire: a jockey is slid until the galvanometer shows no deflection, and the balancing lengths give the ratio of the two resistances. Physics classes use it to find an unknown resistance and, with the wire length and diameter, the specific resistivity of a material. The Wheatstone Bridge Apparatus can be supplied on export terms to Cyprus, Lesotho, Kuwait, Albania and Ghana.
Frequently Asked Questions
How long is the bridge wire on the Wheatstone Bridge Apparatus?
The bridge wire is 24 SWG and 1.0 metre long, laid over a 0–100 cm scale.
