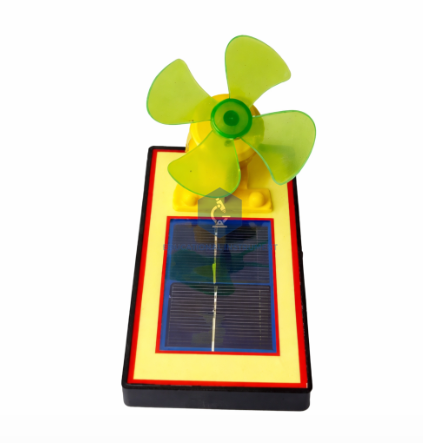

Solar Fan Model
.png)
Product Code : SCL-TMFEEL-12188
This educational instrument facilitates the empirical analysis of photovoltaic-to-mechanical energy transduction. Engineered for secondary and vocational laboratory environments, it enables precise observation of motor startup torque relative to variable irradiance. Compliant with international educational safety standards, the model supports foundational thermodynamics and renewable energy curricula by demonstrating real-time solar harvesting efficiency.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Chassis Material |
High-impact engineering polymer with reinforced structural base |
|
Photovoltaic Component |
Encapsulated polycrystalline silicon solar cell |
|
Drive Mechanism |
Low-friction DC micro-motor with direct-drive propeller |
|
Circuit Configuration |
Integrated high-conductivity busbars with vibration-resistant soldering |
|
Dimensions |
Optimized for laboratory benchtop utility |
|
ISO Compliance Code |
ISO 9001:2015 (Manufacturing Quality Management) |
|
HS Code |
9023.00.00 (Instruments, apparatus and models, for demonstrational purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: High-Efficiency Solar Panel. Outcome: Allows students to analyze the relationship between light intensity and angular velocity, supporting "Evaluate" level physics modules.
Feature: Direct-Drive Fan Assembly. Outcome: Demonstrates the immediate conversion of electrical current into kinetic energy, aiding the "Understand" phase of Work-Energy theorems.
Feature: Open-Architecture Interface. Outcome: Facilitates structural inspection of the DC motor and circuit path without tool-assisted disassembly, supporting Vocational TVET maintenance modules.
Feature: Battery-Free Operation. Outcome: Eliminates chemical storage variables to ensure pure empirical observation of real-time energy harvesting efficiency.
International Logistics & Compliance
All units are secured in export-grade seaworthy crating)to ensure the integrity of the photovoltaic surface and motor alignment during multi-modal transit. Documentation packages provided with each consignment include the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive technical manuals in English. The instrument features a tropicalized design, tested for material stability and electrical performance in operating environments reaching up to 45°C and 90% non-condensing humidity.
Why Source from the OEM
Sourcing directly from the OEM ensures vertical integration and strict adherence to the technical tolerances required for institutional laboratory performance. Our facility manages in-house component assembly and batch-tested uniformity, ensuring consistent startup thresholds across large-scale tender fulfillments. Direct factory sourcing provides immediate spares availability and technical calibration data, mitigating the risks associated with third-party traders and ensuring a sustainable lifecycle for educational investments.
