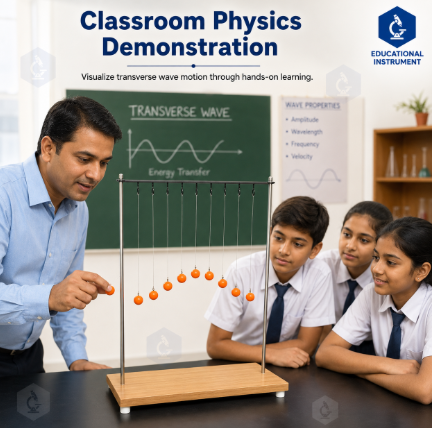

Transverse Wave Pendulum STEM Lab

Product Code : SCL-ES-12563

The Transverse Wave Pendulum Apparatus by Educational Instrument India is an essential, hands-on STEM laboratory instrument engineered to transform abstract physics concepts into an engaging visual reality. Designed for schools, engineering colleges, and science centers, this apparatus offers a captivating demonstration of wave propagation, periodic motion, and phase relationships.

The device consists of a series of independently suspended pendulums of progressively increasing lengths, aligned precisely on a rigid frame. When released simultaneously, the variation in their time periods causes them to fall out of phase and back into phase sequentially. This collective motion creates a mesmerizing, fluid visual effect of a transverse wave—where the individual bobs move perpendicular to the direction of the wave’s propagation. As the cycle continues, the system transitions from orderly wave patterns to complex chaotic phases, eventually returning back into a unified straight line.

Key Learning Objectives:

Wave Characteristics: Visualizes wavelength, amplitude, frequency, and wave velocity.

Oscillatory Motion: Demonstrates how a pendulum’s length dictates its time period .

Phase Dynamics: Illustrates constructive/destructive interference patterns and periodic synchronization.

Product Specifications

Every unit manufactured by Educational Instrument India follows strict quality guidelines to ensure durability and precision engineering. Below are the standard technical specifications:

How to Use the Transverse Wave Pendulum

Follow these simple steps to successfully demonstrate wave patterns in your STEM lab or classroom:

Setup: Place the apparatus on a flat, vibration-free laboratory table. Ensure all pendulum strings hang straight down and are completely stationary.

Alignment: Use the included flat wooden or plastic release bar to gently push all the pendulum bobs back to a uniform angle (typically a 15° to 20° displacement).

Simultaneous Release: Quickly and smoothly pull the release bar away horizontally. This ensures all the pendulums begin their oscillations at the exact same fraction of a second.

Observation: Watch from the side and front angles. You will immediately observe a shifting transverse wave pattern. Over the next 60 seconds, note how the wave pattern fragments into independent, seemingly chaotic movements before beautifully re-aligning back into phase.

Reset: Allow the pendulums to come to a natural rest, or use the release bar to carefully dampen the motion before the next demonstration.

Frequently Asked Questions (FAQ)

Q1: Why do the pendulums create a wave pattern if they are not physically connected?
A: The wave effect is an optical illusion created by phase differences. Because each pendulum has a unique length, it swings at a unique frequency. When released together, their individual, independent periodic movements create a shifting collective pattern that mimics a propagating wave.

Q2: Is this apparatus suitable for competitive board curricula (CBSE, ICSE, International Baccalaureate)?
A: Yes. The model directly aligns with core physics curricula globally for teaching sound, light, mechanical waves, and simple harmonic motion (SHM).

Q3: How do you maintain the instrument to ensure long-term performance?
A: Keep the device in a dust-free environment. Ensure the nylon strings do not become tangled or knotted. Avoid exposing the structural frame to high moisture to maintain the integrity of the alignments.

Q4: Can the string lengths be modified by the user?
A: The string lengths are mathematically calibrated at our factory to achieve the perfect periodic cycle. We recommend keeping the original string lengths intact to prevent disrupting the synchronized wave cycles.
