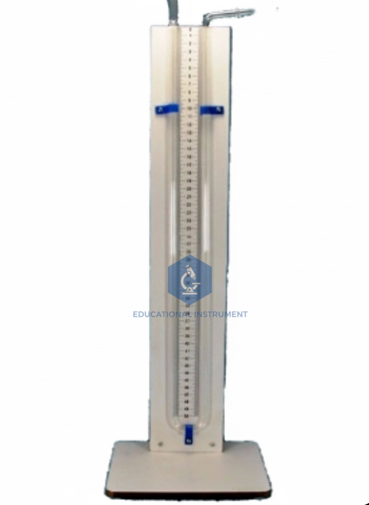

U-Tube Manometer on Stand, Table Model
Product Code : SCL-PLE-11832
Engineered for the precise measurement of differential gas and liquid pressures, this U-Tube Manometer is calibrated for university fluid mechanics labs and Vocational TVET curricula. Utilizing a high-visibility scale and Borosilicate 3.3 glass, it facilitates the empirical verification of Bernoulli’s principle and hydrostatic head calculations in compliance with ASTM and ISO laboratory standards for metrology and instrumentation.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Primary Material Grade |
Borosilicate 3.3 Neutral Glass (Chemical & Thermal Resistant) |
|
Mounting Configuration |
Rigidized Vertical Stand with Weighted Stable Base (Table Model) |
|
Scale Graduation |
Dual-Column Millimetric Scale with zero-adjustment capability |
|
Tube Diameter |
Constant Bore Glass Tubing (Nominal 6mm - 8mm ID) |
|
ISO Compliance Code |
ISO 9001:2015 Manufacturing Standard; ISO 17025 Calibration Ready |
|
HS Code |
9026.20 (Instruments for measuring or checking the pressure of liquids or gases) |
|
Dimensions |
Approx. 300mm to 500mm Vertical Reach (Varies by specific model code) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: High-Contrast Graduated Scale.Outcome: Allows students to calculate pressure differentials with minimal parallax error, supporting Applied Physics Module 201.
Feature: Borosilicate 3.3 Glass Construction.Outcome: Enables the use of varied manometric fluids (mercury, oil, or water) without chemical degradation or tube clouding (Cognitive Level: Analysis).
Feature: Table-Mounted Vertical Stand.Outcome: Provides a stable reference plane for conducting repeatable experiments in fluid statics and steady-state flow (Cognitive Level: Application).
Feature: Dual-Limb Open/Closed Circuit Capability.Outcome: Supports the visualization of gauge pressure vs. atmospheric pressure, facilitating foundational understanding of pressure referencing (Cognitive Level: Comprehension).
International Logistics & Compliance
Educational Instrument ensures all units are prepared for global transit using export-grade seaworthy crating (ISPM-15 compliant) to mitigate glass breakage during multi-modal transport. Each shipment includes a Manufacturer’s Authorization Form (MAF), optional IQ/OQ/PQ Certification, and technical User Manuals in English. The assembly features a tropicalized design, tested for long-term structural integrity in environments reaching up to 45°C and 90% humidity, preventing scale fading and stand oxidation.
Why Source from the OEM?
Procuring directly from the OEM ensures vertical integration of the manufacturing process, from in-house glass-blowing to precision scale etching. Every U-tube is batch-tested for uniformity in bore diameter to prevent capillary action errors common in non-standardized trader products. "Educational Instrument" guarantees direct factory spares availability, including replacement glass limbs and calibrated scales, ensuring institutional laboratory longevity without the need for total unit replacement.
