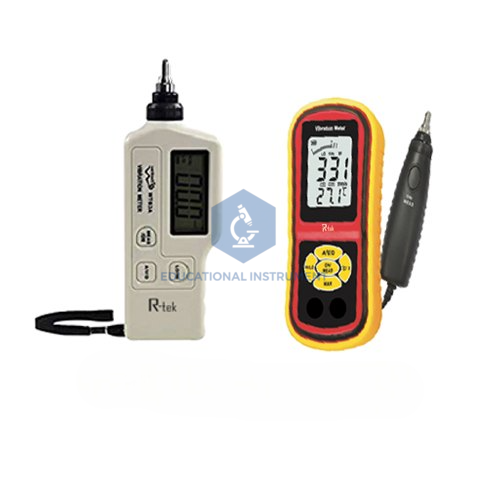

Vibration Meter
.png)
Product Code : SCL-PLE-11636
Quick Answer: The Vibration Meter is a handheld digital meter that measures machine vibration as acceleration, velocity and displacement using a piezoelectric ceramic accelerometer. It has a magnetic base, max hold and an AC signal output for an oscilloscope or recorder.
Last updated: October 2026
Key Features
- Measures acceleration, velocity and displacement
- Piezoelectric ceramic accelerometer
- High/low frequency switch for acceleration
- AC signal output (2V peak) for earphone, recorder or oscilloscope
- Max value hold and ambient temperature display
- Magnetic base for hands-free use on metal machinery
Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Piezoelectric accelerometer (ceramic) |
| Acceleration range | 0.1 to 199.9 m/s squared (peak) |
| Velocity range | 0.1 to 199.9 mm/s (RMS) |
| Displacement range | 0.001 to 1.999 mm (peak-to-peak) |
| Frequency range, acceleration | 10 Hz to 1 kHz (low); 1 kHz to 15 kHz (high) |
| Frequency range, velocity/displacement | 10 Hz to 1 kHz |
| Accuracy | ±5% of reading + 2 digits |
| Display | Multi-line LCD, 0.5 second update |
| Signal output | AC, 2V peak |
| Power | 9V DC battery |
About This Product
Engineering students place the meter on motors, pumps and rotating rigs to compare vibration levels and spot imbalance or looseness. Reading all three quantities on one machine shows how acceleration, velocity and displacement relate, and the AC output lets the waveform be viewed on an oscilloscope. The Vibration Meter can be supplied on export terms to Portugal, Madagascar, São Tomé and Príncipe, Grenada and Belize.
Frequently Asked Questions
What does the high/low frequency switch on the Vibration Meter do?
It sets the acceleration band to 10 Hz to 1 kHz (low) or 1 kHz to 15 kHz (high), helping to separate different sources of vibration.
Can the meter be connected to other instruments?
Yes. It has an AC signal output of 2V peak for an earphone, recorder or oscilloscope.
