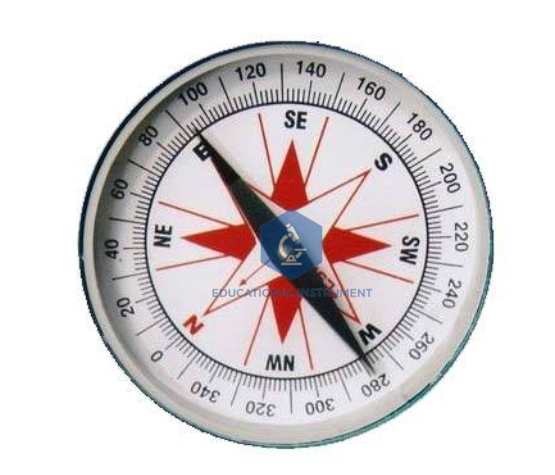

10 CM COMPASS
Product Code : SCL-MH-11982
The 10 cm Magnetic Plotting Compass is an OEM-grade educational instrument engineered for high-sensitivity magnetic field mapping and directional navigation. Constructed with a durable, non-corrosive plastic base and a low-friction pivot system, it adheres to ISO 9001:2015 manufacturing standards. Optimized for Secondary and University-level physics laboratories, it ensures repeatable accuracy in field-line visualization and electromagnetism modules.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Diameter |
100 mm (10 cm) |
|
Base Material |
Ruggedized, Non-Corrosive Polymer |
|
Needle Sensitivity |
High-Response Rare Earth/Magnetic Steel |
|
Graduation |
360° Cardinal Points (N, S, E, W) with Sub-degree Markings |
|
Pivot Design |
Low-Friction Agate/Steel Bearing for Rapid Stabilization |
|
ISO Compliance |
ISO 9001:2015 (Quality Management Systems) |
|
HS Code |
9014.10.00 (Direction Finding Compasses) |
|
Catalog Reference |
103250 |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: High-Sensitivity Magnetic Needle. -Outcome: Enables students to detect and map subtle magnetic flux variations, supporting the "Magnetism and Matter" curriculum modules.
Feature: 10 cm Diameter Large-Scale Dial. Outcome: Facilitates group observation and parallax-free readings during classroom demonstrations of the Oersted experiment.
Feature: Durable Polymer Encapsulation. Outcome: Ensures long-term equipment integrity in high-frequency vocational training environments, reducing the Total Cost of Ownership (TCO).
Feature: 360° Precise Graduation. Outcome: Allows for the quantitative calculation of magnetic declination and dip, advancing student proficiency in vector-based navigation.
International Logistics & Compliance
Designed for global distribution, this educational instrument is available for bulk procurement with export-grade seaworthy crating (ISPM-15 compliant). Standard documentation packages include the Manufacturer’s Authorization Form (MAF), Certificate of Origin, and comprehensive User Manuals in English. The tropicalized design is specifically tested for sustained performance in high-temperature and high-humidity environments (up to 45°C/90% Humidity), ensuring reliability in diverse geographical TVET deployments.
Why Source from the OEM?
Procurement through our vertical integration model eliminates intermediary risks and ensures stringent batch uniformity. Unlike traders, our facility manages the entire production lifecycle—from high-precision magnetic charging to in-house assembly and functional testing. We guarantee direct factory spares availability and long-term technical support, providing procurement officers with the assurance of ISO-certified quality control and consistent performance across large-scale institutional tenders.
