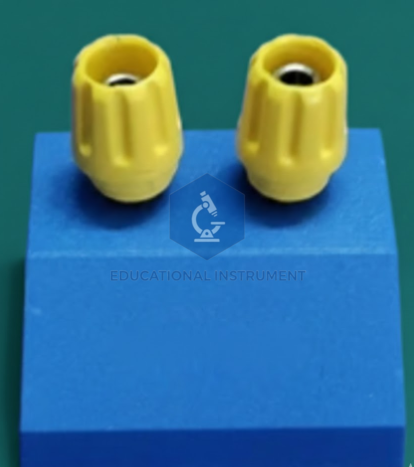

100 OHM FIXED RESISTOR
Product Code : SCL-MH-11983
The 100 Ohm Fixed Resistor is a precision-engineered passive component designed for stable current regulation and signal attenuation in institutional laboratory environments. Manufactured to ISO 9001:2015 standards, this instrument utilizes a cylindrical carbon-film resistive element to ensure low-noise performance and high-thermal stability across University, Secondary, and Vocational TVET curricula.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Nominal Resistance |
100 Ω (Fixed) |
|
Material Grade |
High-Grade Homogeneous Carbon Film on Ceramic Rod |
|
Power Rating |
0.25W (1/4 Watt) |
|
Resistance Tolerance |
±5% (Standard) / ±2% (Precision Grade) |
|
Temperature Coefficient |
±350 ppm/°C to -500 ppm/°C |
|
Maximum Working Voltage |
250V (Continuous) |
|
Operating Temperature |
-55°C to +155°C (Derated above 70°C) |
|
ISO Compliance Code |
ISO 9001:2015 / JIS-C-5202 |
|
HS Code |
8533.21.00 (Fixed Resistors for power < 20W) |
|
Catalog Reference |
103628 |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Color-Coded Bands (Brown-Black-Brown-Gold). -> Outcome: Facilitates immediate identification of ohmic values, supporting fundamental mastery of the Resistor Color Code system in introductory electronics.
Feature: Axial Leaded Cylindrical Design. Outcome: Allows for seamless integration into solderless breadboards and PCB prototyping, enhancing technical proficiency in circuit assembly and troubleshooting.
Feature: Defined Power Rating (0.25W). Outcome: Provides a controlled environment for observing Joule heating and power dissipation limits, supporting Thermodynamics and Physics Module 101.
Feature: Fixed 100 Ohm Impedance. Outcome: Enables precise current-limiting for LED protection and pull-up/pull-down logic biasing in microcontroller-based embedded systems training.
International Logistics & Compliance
This educational instrument is prepared for global distribution using export-grade seaworthy crating (ISPM-15 compliant) to ensure physical integrity during multi-modal transit. Documentation provided includes the Manufacturer’s Authorization Form (MAF), ISO 9001:2015 Quality Certification, and technical data sheets in English. The tropicalized design features a moisture-resistant tan lacquer coating, tested for reliable operation in environmental extremes up to 45°C/90% Humidity.
Why Source from the OEM?
Procuring directly from the OEM ensures vertical integration of the supply chain, moving beyond the "Trader" model to provide guaranteed batch uniformity and traceability. Our facilities utilize automated helical groove cutting and in-house lead welding to maintain rigorous electrical tolerances. Each production run is batch-tested for dielectric withstanding voltage and insulation resistance (exceeding 1000 MΩ), with direct factory spares and long-term technical support available for large-scale institutional tenders.
