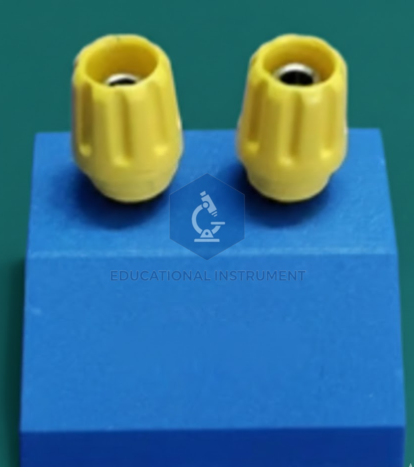

50 OHM FIXED RESISTOR
Product Code : SCL-MH-11994
Precision-engineered for high-stability current regulation, this 50 Ohm Fixed Resistor facilitates standardized electrical circuit analysis in Secondary, Vocational (TVET), and University-level laboratories. Calibrated to ensure minimal thermal drift, the instrument meets rigorous ISO 9001:2015 manufacturing standards, supporting accurate verification of Ohm’s Law and Kirchhoff’s Laws across diverse environmental conditions.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Nominal Resistance |
50 Ohms (Fixed) |
|
Tolerance Range |
±5% (Calibrated for Educational Precision) |
|
Material Grade |
Constantan/Manganin winding on extruded ceramic core |
|
Enclosure/Base |
High-impact flame-retardant polymer or seasoned hardwood |
|
Terminal Interface |
Dual 4mm shrouded safety sockets (Nickel-plated brass) |
|
ISO Compliance Code |
ISO 9001:2015 Certified Manufacturing Facility |
|
HS Code |
8533.21.00 (Fixed resistors for power < 20W) |
|
Operational Temperature |
Rated for continuous load up to 45°C ambient |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Non-inductive Wire Winding. Outcome: Minimizes electromagnetic interference during DC and low-frequency AC experiments, enabling students to Analyze transient circuit behaviors with high data integrity.
Feature: Fixed 50 Ohm Impedance. - Outcome: Provides a standardized constant for the Application of Ohm's Law , allowing learners to isolate and calculate unknown voltage or current variables.
Feature: Transparent Thermal Dissipation Architecture. Outcome: Facilitates the Evaluation of heat-work relationships in resistive components, supporting Thermodynamics and Electrical Power modules.
Feature: Standardized 4mm Interface. Outcome: Supports the Synthesis of complex bridge circuits and series-parallel networks by ensuring seamless compatibility with universal laboratory multimeters.
International Logistics & Compliance
To ensure zero-attrition delivery during multi-modal transit, all units are packed in export-grade seaworthy crating (ISPM-15 compliant). The procurement package includes a Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical data sheets in English. This Educational Instrument features a tropicalized design, specifically laboratory-tested for shelf-stability and resistance to oxidation in environments reaching 45°C and 90% humidity, meeting the rigorous durability requirements of international institutional tenders.
Why Source from the OEM?
Procuring directly from the OEM ensures total vertical integration of the manufacturing lifecycle, from raw resistive alloy selection to final calibration against NIST-traceable standards. Unlike third-party traders, the OEM maintains strict control over winding tension and core insulation, resulting in batch-tested uniformity across large-scale institutional deployments. Direct sourcing guarantees factory-level technical support and the immediate availability of direct factory spares, ensuring a 10-year+ operational lifecycle for the laboratory asset.
