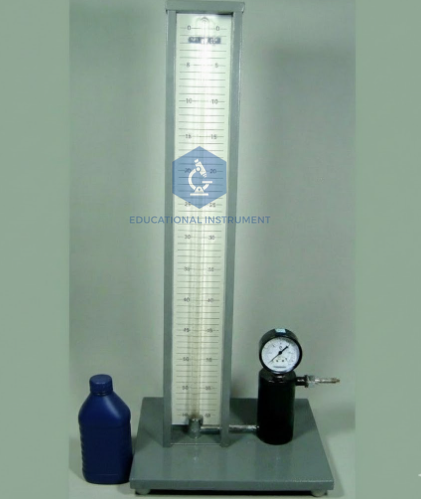

Boyles Law Apparatus, Advanced with Oil
Product Code : SCL-PLE-11811
This advanced-grade Educational Instrument facilitates the empirical verification of Boyle’s Law through oil-pressure transmission. Engineered for University and Vocational Physics laboratories, it utilizes a precision-calibrated Bourdon gauge and high-pressure graduated tube to analyze gas volume-pressure relationships.1 The apparatus meets international laboratory standards for glass pressure vessels, ensuring repeatable data acquisition for advanced isothermal thermodynamics modules.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Borosilicate 3.3 Glass (High-Pressure Wall) |
|
Protective Shield |
High-Impact Transparent Acrylic Safety Chamber |
|
Pressure Range |
0 to 4 kg/cm² (Nominal Calibration) |
|
Volume Graduation |
0 to 50cm³ (Standard Resolution) |
|
Base Material |
Powder-Coated Cast Iron / Reinforced Alloy |
|
Measurement Gauge |
Bourdon Tube Type, Calibrated in P.S.I and kg/cm² |
|
Sealing Mechanism |
Industrial-Grade Nitrile O-Rings |
|
ISO Compliance Code |
ISO 9001:2015 Manufacturing Standards |
|
HS Code |
9023.00.00 (Demonstrational Instruments) |
Key Pedagogical Outcomes
Feature: Graduated High-Pressure Borosilicate Tube. - Outcome: Enables precise volumetric data collection under variable pressure, supporting Bloom’s Level 4 (Analysis) of gas behavior.
Feature: Oil-Interfaced Compression System. Outcome: Minimizes gas leakage and provides a high-visibility meniscus for volume identification, ensuring experimental accuracy in Isothermal modules.
Feature: Integrated Bourdon Gauge with Manual Valve. Outcome: Allows students to synthesize the relationship between mechanical force and atmospheric pressure, validating the P \times V = Kequation.
Feature: Transparent Safety Shielding. Outcome: Demonstrates laboratory safety protocols for pressurized systems while allowing unobstructed 360-degree observation.
International Logistics & Compliance
Logistical execution utilizes export-grade seaworthy crating (ISPM-15 compliant) to ensure structural integrity across multimodal transit routes. Standard procurement documentation includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification for institutional quality assurance, and comprehensive technical manuals in English. The apparatus features a tropicalized design, with chemical-resistant finishes and materials tested for sustained operation in environments up to 45°C and 90% humidity.
Why Source from the OEM?
Procurement directly from the OEM ensures full vertical integration, from the in-house glassforming of pressure-rated tubes to the precision calibration of measurement gauges. Every unit is batch-tested for pressure retention and graduation uniformity, eliminating the reliability inconsistencies typical of third-party traders. Buyers receive guaranteed direct factory spares availability, ensuring long-term laboratory uptime and immediate technical support for institutional tenders.
