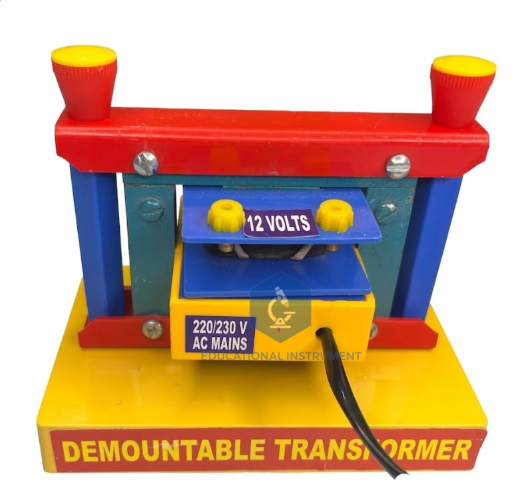

Electrical Transformer Model
.png)
Product Code : SCL-TMFEEL-12152
Optimized for the empirical verification of Faraday’s Law and mutual induction, this Educational Instrument provides a high-fidelity environment for secondary and vocational electrical engineering modules. Engineered for safety and durability, it facilitates precise demonstrations of step-up/step-down voltage transformation and core efficiency analysis. Compliant with IEC/ISO laboratory standards, it serves as a critical asset for university-level physics and vocational electrical training.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Primary Input Voltage |
220-240V AC, 50/60Hz (Standard Mains) |
|
Secondary Output Taps |
Multi-tap configuration: 6V and 12V AC |
|
Coil Composition |
High-Purity Enamelled Copper Winding |
|
Core Material Grade |
Laminated High-Permeability Soft Iron Core |
|
Connection Interface |
4mm Shrouded Safety Sockets (Secondary) |
|
Insulation Rating |
Class B (Tested for sustained thermal stability) |
|
Mounting Chassis |
Impact-Resistant, Non-Conductive Insulated Base |
|
ISO Compliance Code |
ISO 9001:2015 Quality Management System |
|
HS Code |
9023.00.00 (Demonstrational Instruments) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Multi-Tap Secondary Coils. Outcome: Enables students to calculate turns ratios and verify the Transformer Equation supporting Electrical .
Feature: Laminated Iron Core Construction. Outcome: Facilitates the analysis of eddy current suppression and hysteresis loss, aligning with "Evaluate" and "Analyze" levels of pedagogical development.
Feature: Transparent Component Layout. Outcome: Allows for direct visual inspection of mutual induction mechanics, reinforcing the relationship between magnetic flux and EMF generation.
Feature: 4mm Safety Terminal Sockets. Outcome: Supports procedural fluency in circuit assembly while maintaining strict laboratory safety protocols in high-throughput environments.
International Logistics & Compliance
Each unit is secured in export-grade seaworthy crating (ISPM-15 compliant) to ensure structural integrity during intermodal transit. Comprehensive documentation packages are provided, including the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and localized Technical Manuals in English. The tropicalized design is verified for continuous operational stability in environments up to 45°C and 90% non-condensing humidity, meeting the rigorous demands of global institutional procurement.
Why Source from the OEM
Procuring directly from the OEM ensures total vertical integration, from precision winding of copper coils to the batch-testing of core permeability. Unlike third-party traders, our facility provides direct factory spares availability and technical support for large-scale institutional deployments. Every Educational Instrument is subjected to rigorous routine testing to ensure dielectric strength and thermal uniformity, guaranteeing long-term performance in high-use educational laboratories.
