FET Characteristics Apparatus
.png)
Product Code : SCL-EI-12140

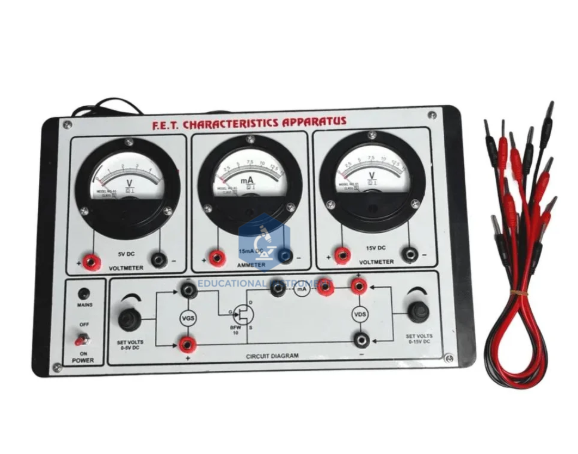

The FET Characteristics Apparatus is a precision laboratory module engineered for the empirical mapping of Field Effect Transistor (FET) Drain and Transfer characteristics. Designed for University and Vocational technical laboratories, it provides dual independent regulated DC bias for the quantification of pinch-off voltage and transconductance parameters. This calibrated educational instrument complies with ISO 9001:2015 manufacturing standards for semiconductor research and training.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Drain Power Supply (VDS) |
Integrated Variable DC Regulated; 0–15V DC |
|
Gate Power Supply (VGS) |
Integrated Variable DC Regulated; 0–5V DC |
|
Instrumentation (Voltage) |
Dual Analog Meters; Range 5V / 15V DC |
|
Instrumentation (Current) |
Analog Ammeter; Range 0–25mA DC |
|
Semiconductor Component |
Integrated JFET (e.g., BFW10 or equivalent) |
|
Interface Port |
4mm Shrouded Color-Coded Safety Sockets |
|
Panel Construction |
High-Insulation Bakelite with Silk-Screened Circuit Schematic |
|
Enclosure Material |
High-Impact ABS Plastic or Ruggedized PVC Cabinet |
|
Dimensions |
280mm x 205mm x 85mm (Nominal) |
|
ISO Compliance Code |
ISO 9001:2015 Quality Management System |
|
HS Code |
9023.00.10 |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Dual Independent Regulated DC Supplies. Outcome: Enables students to "Analyze" the specific relationship between gate-source voltage and drain-source current, supporting Microelectronics Module 102.
Feature: Simultaneous Drain Voltage and Current Metering. Outcome: Facilitates the "Evaluation" of the ohmic and saturation regions, allowing students to verify theoretical pinch-off voltage against empirical data.
Feature: Silk-Screened Circuit Schematic Overlays. Outcome: Supports the "Application" of physical circuit configuration and biasing techniques, bridging the gap between textbook circuit symbols and hardware implementation.
International Logistics & Compliance
This educational instrument is dispatched in export-grade seaworthy crating (ISPM-15 compliant) to ensure the integrity of the calibrated analog meters and semiconductor components during intermodal transit. Comprehensive procurement documentation, including the Manufacturer’s Authorization Form (MAF), serialized IQ/OQ/PQ Certification, and technical user manuals in English, is included with every unit. The hardware features a tropicalized design, batch-tested for operational stability in ambient temperatures up to 45°C and 90% non-condensing humidity, ensuring long-term durability in diverse global climates.
Why Source from the OEM
Procuring directly from the Original Equipment Manufacturer ensures total vertical integration of the manufacturing cycle, from in-house PCB population to the final precision calibration of the internal DC regulators. Unlike third-party traders, our facility provides direct factory spares availability and batch-tested uniformity across all units, ensuring consistent data acquisition for institutional cohorts. This direct engineering oversight maintains strict component tolerances, significantly lowering the Total Cost of Ownership (TCO) for institutional procurement through extended asset longevity.
