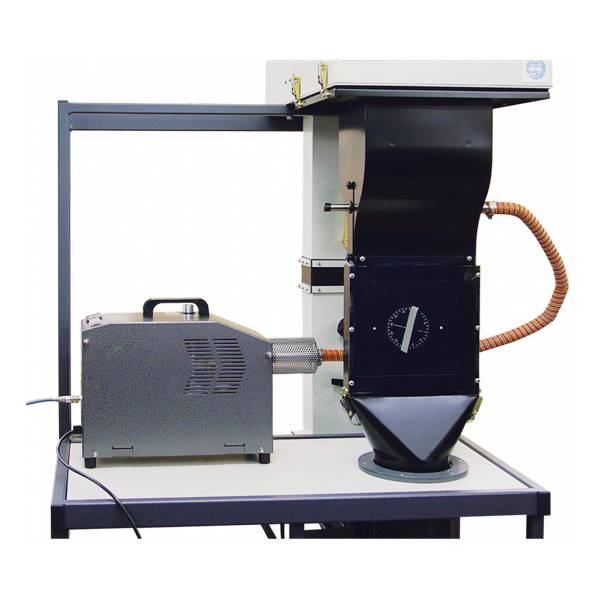

This module consists of a specially-shaped duct which has a large working section with transparent window.
The duct has a rake of tubes from which filaments of smoke emerge and flow around two-dimensional models held in the working section.
The inlet of the duct is attached to the Air Flow Bench plenum chamber using quick-release clamps; the outlet is located into the bench exhaust.
The smoke filaments can be made to visually show areas of steady and unsteady flow, thickening boundary layers, and separation.
The models are quickly and simply mounted, allowing the unit to be used for student project work.
The unit produces considerable amounts of smoke which is safe and non-toxic but, to avoid the air in the laboratory becoming saturated, the unit includes a length of flexible tubing that connects the Air Flow Bench exhaust to either a suitable opening to atmosphere, or to an existing fan extraction system.
