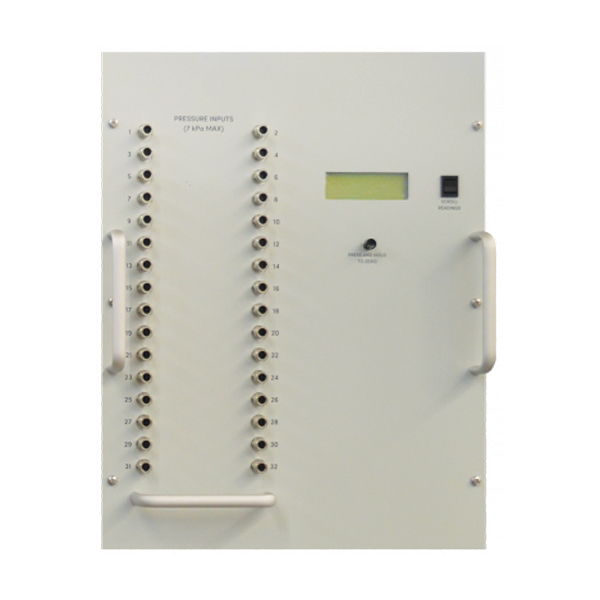

The 32-Way Pressure Display Unit is an optional ancillary to modular Subsonic Wind Tunnels.
It measures and displays up to 32 pressures from models, Pitot-static tubes and other measuring instruments fitted to a wind tunnel.
This allows easy and quick connection between the unit and an experiment mounted in a wind tunnel.
All pressures are measured with respect to atmosphere.
It is ideally suited to applications where multiple pressure measurements are required, for example in boundary layer and tapped aero foil model investigations.
The unit has an integral liquid crystal display with a scroll switch that allows all 32 channels to be viewed in groups of four at any time.
Connection to each of the 32 calibrated pressure transducers is via quick-release pressure inputs mounted on the front panel of the unit.
