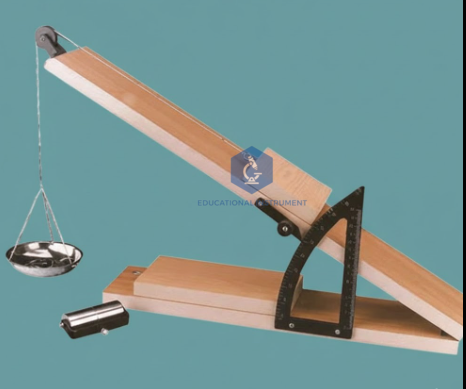

Inclined Plane, Brass
Product Code : SCL-MH-11933
The Inclined Plane (Brass) is a precision-engineered mechanics apparatus designed for the empirical study of force vectors, mechanical advantage, and friction in University and Vocational (TVET) laboratories. Compliant with ISO 9001:2015 quality standards, this Educational Instrument enables high-accuracy resolution of angular components. It is optimized for durable, repeatable data acquisition in advanced classical mechanics curricula.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Polished Architectural Brass Plate; Seasoned Hardwood or Metallic Base |
|
Angular Adjustment |
0° to 45° (High-resolution Integrated Protractor) |
|
Pulley Architecture |
Low-friction, Adjustable Height, Mounted on Brass Frame |
|
Dimensions |
600mm x 100mm (Standardized experimental surface) |
|
ISO Compliance Code |
ISO 9001:2015 Quality Management Systems |
|
HS Code |
9023.00.00 (Demonstrational instruments and apparatus) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: High-Density Polished Brass Surface. Outcome: Provides a standardized low-variance friction interface, allowing students to Analyze the coefficients of static and kinetic friction across multiple metallurgical samples.
Feature: Integrated Graduated Protractor and Plumb Line. Outcome: Facilitates the Evaluation of trigonometric force components, enabling precise verification of the resolution of vectors .
Feature: Adjustable End Pulley. Outcome: Supports the Application of Work-Energy theorems by allowing the addition of variable hanging masses to counteract gravitational forces on the plane.
International Logistics & Compliance
To ensure the geometric alignment of the brass plate and the integrity of the integrated protractor during intermodal transit, this Educational Instrument is secured in export-grade seaworthy crating (ISPM-15 compliant). Comprehensive documentation provided for international procurement officers includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical User Manuals in English. The Tropicalized design is validated for operational stability in environments reaching 45°C and 90% Humidity, ensuring the brass surfaces remain oxidation-resistant and the base remains warp-free.
Why Source from the OEM?
Procuring from the Educational Instrument OEM ensures total vertical integration, from the in-house machining of the brass components to the final calibration of the angular adjustment scales. Unlike third-party traders, our facility utilizes batch-tested for uniformity protocols, ensuring that the surface roughness ($R_a$) of the brass plate remains consistent across all units for standardized laboratory results. Sourcing directly guarantees direct factory spares availability—including replacement pulleys, protractors, and friction blocks—providing a validated maintenance path for international development tenders and government educational supply chains.
