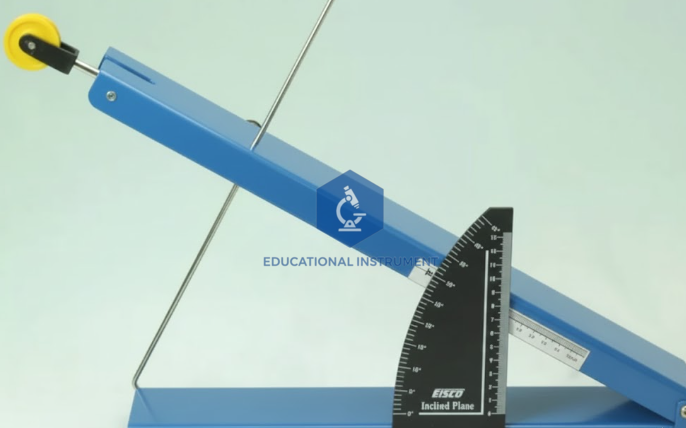

Inclined Plane, Deluxe
Product Code : SCL-MH-11934
The Inclined Plane Deluxe is a precision-engineered mechanics apparatus designed for the empirical quantification of frictional coefficients and vector resolution in University and Vocational (TVET) laboratories. Built to ISO-compliant quality standards, this Educational Instrument features an adjustable high-stability platform for resolving force components (mg \sin \theta and mg \cos \theta). It is optimized for durable, repeatable data acquisition in advanced classical mechanics curricula.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Ruggedized Metallic/Hardwood Hybrid with Low-Friction Finish |
|
Angular Resolution |
Integrated Calibrated Protractor (0° to 90° range) |
|
Pulley Architecture |
Low-friction, height-adjustable end-pulley assembly |
|
Dimensions |
600mm x 100mm (Standardised experimental surface) |
|
ISO Compliance Code |
ISO 9001:2015 Accredited Manufacturing |
|
HS Code |
9023.00.00 (Demonstrational instruments and apparatus) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Variable Angular Adjustment Mechanism. -Outcome: Enables students to Evaluate the critical angle of repose and calculate static versus kinetic friction coefficients.
Feature: Integrated Degree Scale and Plumb Line. Outcome: Facilitates the Analysis of trigonometric force resolution, supporting the verification of mechanical advantage in complex machine modules.
Feature: Calibrated Friction Blocks (Diverse Surfaces). Outcome: Promotes the Application of material science principles by quantifying surface-to-surface interaction variances.
International Logistics & Compliance
To ensure the geometric alignment and the structural integrity of the calibrated scales during intermodal transit, this Educational Instrument is secured in export-grade seaworthy crating (ISPM-15 compliant). Documentation provided for international procurement includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical User Manuals in English. The Tropicalized design is validated for operational stability in environments reaching 45°C and 90% Humidity, ensuring that the friction surfaces and metallic hinges remain oxidation-resistant.
Why Source from the OEM?
Procuring from the Educational Instrument OEM ensures total vertical integration, from the in-house machining of the hinge components to the precision calibration of the angular protractors. Unlike third-party traders, our facility utilizes batch-tested for uniformity protocols, ensuring that the surface roughness (R_a) of the plane remains consistent across all units for standardized laboratory results. Sourcing directly guarantees direct factory spares availability—including replacement pulleys and friction blocks—providing a validated maintenance path for international development tenders and government educational supply chains.
