Laser Ray Box
.png)
Product Code : SCL-OS-12215

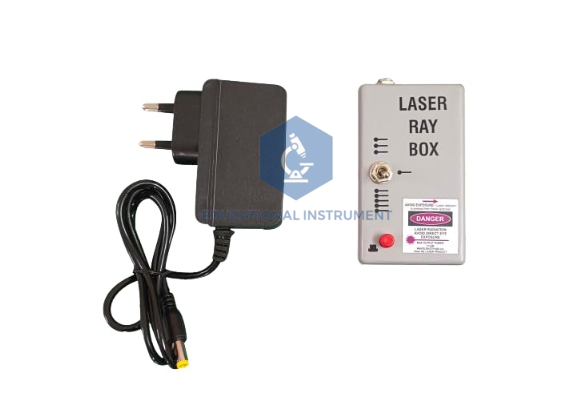

Engineered for high-visibility visualization of geometric optics, this Laser Ray Box generates five parallel, low-divergence beams for ray-tracing analysis. Optimized for secondary, vocational, and undergraduate physics laboratories, the instrument facilitates empirical measurement of refraction, reflection, and focal points. Compliant with IEC 60825-1 laser safety standards, the unit ensures repeatable data acquisition in TVET-aligned optics modules.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Light Source |
Solid-state Diode Lasers (Red) |
|
Beam Configuration |
Selectable 1, 3, or 5 parallel rays via integrated toggle |
|
Wavelength |
635nm – 650nm |
|
Safety Classification |
Class II / IIa (Output power < 1mW) |
|
Enclosure Material |
Impact-Resistant ABS / Heat-Dissipating Alloy |
|
Power Requirements |
12V DC Input (External Power Adapter included) |
|
Base Construction |
Magnetic backing for vertical demonstration compatibility |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
9023.00.00 (Instruments/Models for Demonstrational Purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Selectable 1, 3, or 5 parallel beam output. Outcome: Allows students to isolate individual rays or analyze multi-ray convergence/divergence, supporting "Analyze" level objectives in Wave Optics.
Feature: Low-divergence Diode Lasers. Outcome: Enables precise calculation of refractive indices and focal lengths with minimal parallax error, facilitating "Evaluate" level experimental validation.
Feature: Integrated Magnetic Mounting. Outcome: Supports large-scale classroom demonstrations on magnetic whiteboards, allowing students to "Apply" theoretical ray diagrams to real-time physical phenomena.
International Logistics & Compliance
The Educational Instrument is prepared for global distribution using export-grade seaworthy crating (ISPM-15 compliant) to ensure optical alignment is maintained during transit. Full procurement documentation is provided, including Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive technical manuals in English. The hardware features a tropicalized design, tested for sustained operation in laboratory environments up to 45°C and 90% humidity without diode degradation.
Why Source from the OEM
Procuring directly from the OEM ensures total vertical integration and adherence to rigorous optical tolerances. Every unit is batch-tested for beam collimation and wavelength consistency to ensure synchronized results across large-scale institutional deployments. Sourcing from the manufacturer eliminates intermediary markup and guarantees direct factory spares availability, in-house diode calibration, and technical support directly from the engineering team.
