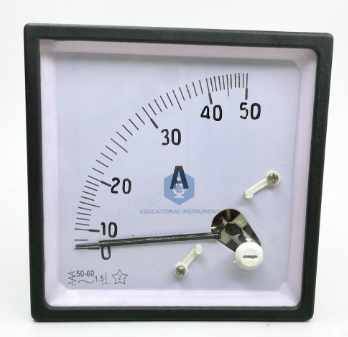

Quick Answer: The Analog Ammeter Panel is a panel-mounting moving-iron ammeter reading 0 to 50 A on AC or DC, with a 90° arc scale and knife-edge pointer.
Last updated: October 2026
Key Features
Range 0 – 50 A
Works on both AC and DC
Moving-iron movement
90° arc scale with a knife-edge pointer
Panel-mounting design
Technical Specifications
Specification
Value
Range
0 – 50 A
Supply type
AC/DC
Movement
Moving iron
Scale
90° arc, knife-edge pointer
Mounting
Panel
About This Product
A panel ammeter is built into trainer boards, power supplies and machine test benches to show the current drawn at a glance. In electrical engineering labs it is used for machine testing and power electronics experiments where currents run high.
Frequently Asked Questions
Can the Analog Ammeter Panel be used on AC and DC?
Yes. It has a moving-iron movement and reads 0 to 50 A on both AC and DC.
