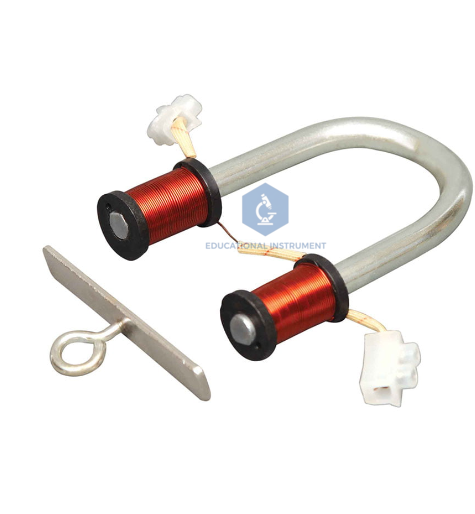

Quick Answer: The Electromagnet ‘U’ shape has a soft-iron core wound with insulated copper coils and a removable armature with a suspension hook. It is made for 6V-12V DC input.
Last updated: October 2026
Key Features
U-shaped soft-iron core
Layered insulated copper coils with two terminals
Removable armature fitted with a suspension hook
Runs on 6V-12V DC
Technical Specifications
Specification
Value
Core
Soft iron, U-shaped
Winding
Insulated copper coils, two terminals
Armature
Removable, with suspension hook
Input
6V-12V DC
About This Product
When current flows through the coils, the soft-iron core becomes magnetised and holds the armature across its two poles. Students use it to compare field strength with current, to study the motor effect and to test lifting force by hanging loads from the armature hook. Laboratories and colleges in Costa Rica, Papua New Guinea, France, Italy, Palestine and Indonesia can buy the Electromagnet ‘U’ shape through an export order.
Frequently Asked Questions
What supply does the Electromagnet ‘U’ shape need?
It is made for a 6V-12V DC input, connected through the two coil terminals.
