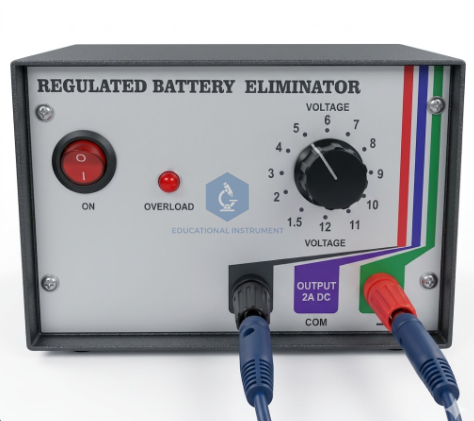

IC Regulated Battery Eliminator
.png)
Product Code : SCL-EI-12122
This IC-regulated DC power supply provides selectable outputs from 1.5V to 12V at 2A, eliminating chemical cell maintenance in Secondary and University laboratories. Engineered for high-stability experimental loads, it ensures terminal voltage consistency during circuit analysis. Compliant with ISO 9001:2015 standards, the instrument features electronic overload protection to safeguard sensitive institutional hardware and ensure repeatable scientific data.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Input Voltage |
220V – 240V AC, 50/60 Hz |
|
Output Potential |
Selectable 1.5, 3, 4.5, 6, 7.5, 9, 12V DC |
|
Regulation Type |
IC-Based Linear Regulation (Low Ripple) |
|
Current Capacity |
2.0 Amperes (Continuous Duty) |
|
Protection Architecture |
Electronic Overload Cut-off with LED Indicator |
|
Material Grade |
Heavy-duty cold-rolled steel chassis (Powder-Coated) |
|
Interface |
4mm Shrouded Safety Sockets (Color-Coded) |
|
Internal Insulation |
Class H (Vacuum Impregnated Transformer) |
|
ISO Compliance Code |
ISO 9001:2015 / CE Certified |
|
HS Code |
8504.40.90 (Static Converters/Power Supplies) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: IC-Regulated DC Output. Outcome: Provides a stabilized reference voltage for semiconductor biasing and Ohm’s Law verification, allowing students to "Analyze" electrical characteristics without voltage sag or experimental variance.
Feature: Multi-Step Rotary Voltage Selector. Outcome: Enables comparative study of circuit behavior across discrete potential levels, facilitating the "Evaluation" of current-voltage relationships in complex resistor-capacitor networks.
Feature: Electronic Overload Protection. Outcome: Reinforces procedural laboratory safety compliance, as students learn to "Apply" load calculations to prevent system trips and protect sensitive downstream measuring instruments.
Feature: Full-Wave Bridge Rectification. Outcome: Delivers a high-purity DC signal for precision galvanometer-based bridge measurements, supporting the "Synthesis" of advanced electromagnetic and bridge-balancing principles.
International Logistics & Compliance
Logistics protocols for this Educational Instrument prioritize structural integrity during multi-modal transit via export-grade seaworthy crating (ISPM-15 compliant). Comprehensive documentation sets are provided with every consignment, including the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification (Installation, Operational, and Performance Qualification), and technical User Manuals in English. The hardware features a tropicalized design, rigorously tested for sustained operation in high-ambient environments up to 45°C and 90% non-condensing humidity, meeting the specific requirements of international institutional tenders.
Why Source from the OEM
Procurement from the OEM provides vertical integration of the electronic supply chain, from in-house PCB population and soldering to the vacuum impregnation of internal copper-wound transformers. Unlike non-manufacturing traders, we offer batch-tested uniformity and guaranteed direct factory spares availability, including proprietary regulation ICs and selector switches. Our forensic quality control ensures that the internal circuitry is calibrated for heavy-duty institutional duty cycles, maintaining output accuracy within strict scientific tolerances over extended operational lifecycles.
