Zener Diode Apparatus (Socket Type)
.png)
Product Code : SCL-EI-12138

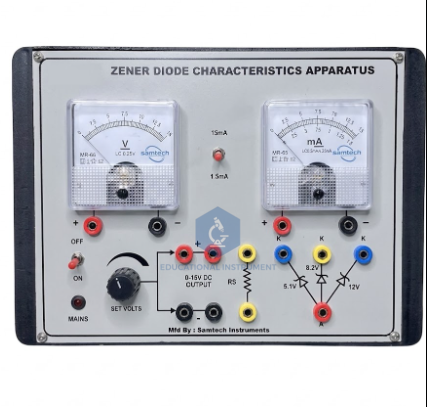

The Zener Diode Apparatus is a precision instrumentation module engineered for the empirical verification of voltage regulation and breakdown characteristics. Designed for University and Secondary technical laboratories, it features stabilized DC bias and integrated metering for plotting forward and reverse I-V curves. This calibrated educational instrument ensures repeatable data acquisition, adhering to ISO 9001:2015 quality manufacturing standards.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Integrated Power Supply |
Variable DC Regulated; 0–15V DC |
|
Instrumentation (Voltage) |
Analog/Digital Voltmeter; Range 0–15V DC |
|
Instrumentation (Current) |
Analog/Digital Ammeter; Range 0–50mA DC |
|
Component Interface |
Socket-type mounting for interchangeable Zener Diodes |
|
Panel Construction |
High-Insulation Bakelite with Printed Circuit Schematic |
|
Enclosure Material |
High-Impact ABS Plastic or Ruggedized PVC Cabinet |
|
Dimensions |
310mm x 200mm |
|
Material Grade |
Industrial Bakelite / Grade-A Electronic Components |
|
ISO Compliance Code |
ISO 9001:2015 Certified Production |
|
HS Code |
9023.00.10 |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Socket-Based Component Mounting. Outcome: Allows students to "Evaluate" various Zener breakdown voltages by swapping physical components, reinforcing solid-state physics theory.
Feature: Integrated Variable 0-15V DC Supply. Outcome: Facilitates the "Analysis" of current-voltage relationships specifically in the reverse-bias region, supporting Electronics Module 102.
Feature: High-Contrast Printed Schematic Panel. Outcome: Enables students to "Apply" theoretical circuit knowledge to physical hardware wiring using 4mm shrouded patch cords, fostering practical troubleshooting skills.
International Logistics & Compliance
This educational instrument is dispatched in export-grade seaworthy crating (ISPM-15 compliant) to maintain technical calibration during multi-modal transit. Every shipment includes a Manufacturer’s Authorization Form (MAF), serialized IQ/OQ/PQ certification, and comprehensive technical user manuals in English. The apparatus features a tropicalized internal architecture, batch-tested for operational stability in ambient temperatures up to 45°C and 90% non-condensing humidity, ensuring longevity in diverse global climates.
Why Source from the OEM
Procuring directly from the Original Equipment Manufacturer ensures total vertical integration of the production cycle, from the precision etching of high-insulation Bakelite panels to the final calibration of the internal DC regulators. Unlike third-party traders, our facility provides direct factory spares availability and batch-tested uniformity across all units. This direct engineering oversight maintains strict tolerance levels for electronic components, significantly lowering the Total Cost of Ownership (TCO) for institutional procurement through extended asset longevity.
