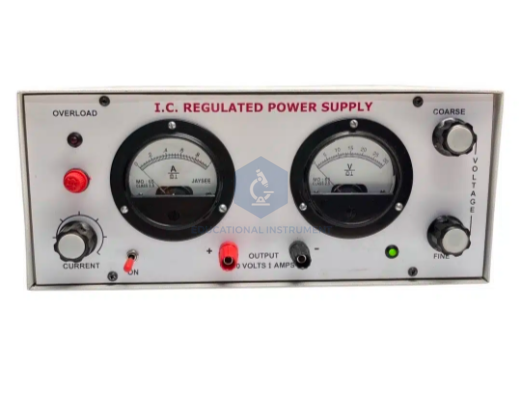

IC Regulated Power Supply
.png)
Product Code : SCL-EI-12121
This IC-regulated DC power supply provides a continuously variable 0-30V output at 1A, engineered for high-stability biasing of semiconductor circuits. It ensures ripple-free voltage delivery in University and Vocational TVET environments. Compliant with international electrical safety standards, the unit eliminates experimental drift caused by thermal fluctuations or load variations in institutional laboratory settings.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Output Voltage |
0 - 30V DC (Continuously Variable) |
|
Output Current |
0 - 1 Ampere (Continuous Duty) |
|
Regulation Mechanism |
IC-Based Linear Regulation |
|
Ripple & Noise |
< 1mV RMS |
|
Material Grade |
Ruggedized Cold-Rolled Steel Chassis (Powder-Coated) |
|
Display Interface |
Dual Analog/Digital Meters for Voltage and Current Monitoring |
|
Protection Circuitry |
Short-Circuit and Overload Protection |
|
Interface |
4mm Shrouded Safety Sockets (Color-Coded) |
|
ISO Compliance Code |
ISO 9001:2015 |
|
HS Code |
8504.40.90 (Static Converters/Power Supplies) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: IC-Regulated Linear Circuitry. Outcome: Provides a stabilized DC signal allowing students to evaluate semiconductor characteristics without interference from AC ripple, supporting the "Analysis" level of learning.
Feature: 0-30V Continuously Variable Range. Outcome: Facilitates the testing of diverse electronic components across multiple biasing thresholds, supporting the "Application" of Kirchoff's and Ohm’s laws.
Feature: Integrated Overload Protection. Outcome: Enables students to safely synthesize complex circuit networks by providing immediate feedback on current limit thresholds, reinforcing laboratory safety protocols (Evaluation Level).
Feature: Dual Metering System. Outcome: Standardizes the simultaneous monitoring of independent variables, allowing students to "Synthesize" real-time power consumption data during electronic experimentation.
International Logistics & Compliance
Procurement processes are supported by export-grade seaworthy crating (ISPM-15 compliant) to maintain internal component calibration and chassis integrity during multi-modal transit. Documentation includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification (Installation, Operational, and Performance Qualification), and comprehensive technical manuals in English. The instrument features a tropicalized design tested for sustained operation up to 45°C and 90% humidity, ensuring reliability for international tenders in varying climatic regions.
Why Source from the OEM
Direct OEM sourcing ensures complete vertical integration, from in-house PCB population and soldering to the precision calibration of voltage-tracking ICs. Unlike third-party traders, our facility provides batch-tested uniformity and guaranteed direct factory spares availability. Every unit undergoes rigorous 24-hour burn-in testing to ensure that output stability exceeds institutional standards for heavy-duty student use, maintaining calibrated tolerances over extended operational lifecycles.
