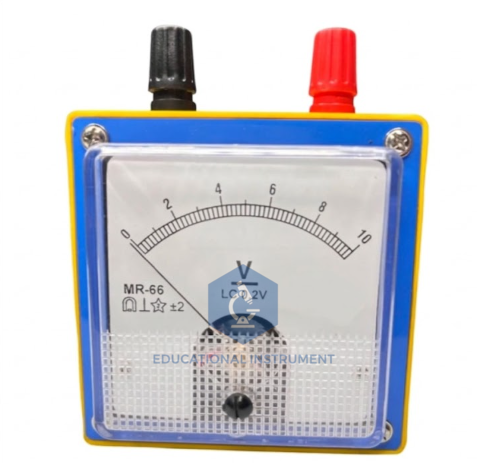

Quick Answer: The Moving Coil Meter is a permanent-magnet moving-coil (PMMC) meter for DC measurements, with a 60 mm x 60 mm faceplate, accuracy class 2.5 and an anti-parallax pointer over a linear scale.
Last updated: October 2026
Key Features
Permanent magnet moving coil movement for DC
60 mm x 60 mm faceplate
Accuracy class 2.5 (±2.5% of full-scale deflection)
ABS housing with acrylic window
Front-mounted zero-adjust screw
Technical Specifications
Specification
Value
Movement
Permanent magnet moving coil (PMMC)
Accuracy class
2.5 (±2.5% FSD)
Faceplate
60 mm x 60 mm
Housing
ABS, acrylic window
Scale
Linear, anti-parallax pointer
Zero adjustment
External front screw
About This Product
A moving-coil meter gives a steady pointer reading of direct current or voltage, which makes it useful for finding the balance point in bridge circuits and for watching induced currents. It is used in school and college physics labs for Wheatstone bridge, meter bridge and electromagnetic induction practicals.
Frequently Asked Questions
Is the Moving Coil Meter meant for AC or DC?
It is a permanent-magnet moving-coil meter intended for DC measurements.
