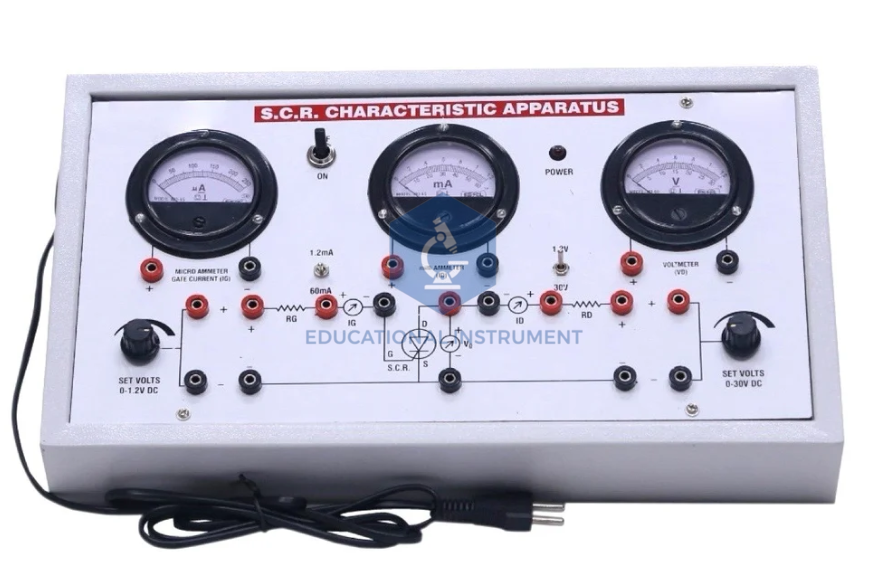

SCR Characteristics Apparatus
.png)
Product Code : SCL-EI-12139
The SCR Characteristics Apparatus is a precision laboratory trainer engineered for the empirical mapping of Silicon Controlled Rectifier V-I curves. Designed for University and Vocational engineering programs, it facilitates the quantification of triggering levels, latching currents, and holding currents. This instrumentation adheres to ISO 9001:2015 standards, providing a calibrated environment for rigorous power electronics analysis and semiconductor verification.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Anode Power Supply |
Integrated Variable DC Regulated; 0–30V DC |
|
Gate Power Supply |
Integrated Variable DC Regulated; 0–1V or 0–5V DC |
|
Measurement (Anode Voltage) |
Analog/Digital Voltmeter; Range 0–30V DC |
|
Measurement (Gate Voltage) |
Analog/Digital Voltmeter; Range 0–1V or 0–5V DC |
|
Measurement (Anode Current) |
Analog/Digital Ammeter; Range 0–50mA DC |
|
Measurement (Gate Current) |
Analog/Digital Ammeter; Range 0–250µA DC |
|
Interface Port |
4mm Shrouded Color-Coded Safety Sockets |
|
Panel Construction |
High-Insulation Bakelite with Silk-Screened Circuit Schematic |
|
Enclosure Material |
Ruggedized ABS Plastic or Powder-Coated Metal Cabinet |
|
Dimensions |
310mm x 200mm (Nominal) |
|
ISO Compliance Code |
ISO 9001:2015 Certified Production |
|
HS Code |
9023.00.10 |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Independent Dual Regulated DC Sources. Outcome: Enables students to "Analyze" the specific relationship between gate current and anode-cathode breakdown voltage, supporting Power Electronics Module 201.
Feature: Integrated Micro-Ammeter and Milli-Ammeter. Outcome: Facilitates the "Evaluation" of latching and holding currents, allowing students to verify manufacturer datasheet tolerances through empirical data acquisition.
Feature: Silk-Screened Circuit Schematic Overlays. Outcome: Supports the "Application" of theoretical semiconductor physics to physical hardware configuration, fostering technical circuit literacy and diagnostic proficiency.
International Logistics & Compliance
This educational instrument is dispatched in export-grade seaworthy crating (ISPM-15 compliant) to ensure the integrity of the calibrated moving-coil movements and electronic components during intermodal transit. Comprehensive procurement documentation, including the Manufacturer’s Authorization Form (MAF), serialized IQ/OQ/PQ Certification, and technical manuals in English, is included. The hardware features a tropicalized design, batch-tested for operational stability in ambient temperatures up to 45°C and 90% non-condensing humidity, ensuring long-term durability in diverse climates.
Why Source from the OEM
Procuring directly from the Original Equipment Manufacturer ensures total vertical integration of the manufacturing cycle, from in-house PCB population to the final calibration of the four-meter instrumentation array. Unlike third-party traders, our facility provides direct factory spares availability and batch-tested uniformity across all units, ensuring consistent laboratory data acquisition for institutional cohorts. This direct engineering oversight maintains strict component tolerances, significantly lowering the Total Cost of Ownership (TCO) for institutional procurement.
