Steam Engine Model
.png)
Product Code : SCL-TMFEEL-12175
This Educational Instrument facilitates the empirical study of thermodynamic cycles and reciprocal motion. Engineered for Secondary and Vocational Technical Education (TVET), it provides a functional simulation of external combustion and heat-to-mechanical energy conversion. The model supports physics and engineering modules by quantifying piston displacement and flywheel momentum, adhering to international laboratory safety standards for pressurized vessel simulations.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
System Configuration |
Horizontal/Vertical reciprocal piston-driven assembly |
|
Material Grade |
High-grade cast alloy and heat-resistant brass components |
|
Mechanical Interface |
Heavy-duty flywheel with integrated drive pulley |
|
Control System |
Calibrated slide valve and centrifugal governor mechanism |
|
Base Construction |
Precision-machined stable platform with vibration damping |
|
ISO Compliance Code |
ISO 9001:2015 Manufacturing Quality Standards |
|
HS Code |
9023.00 (Instruments, apparatus and models for demonstrational purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Functional Slide Valve Mechanism. Outcome: Allows students to analyze the timing of intake and exhaust cycles, supporting Thermodynamics Module 202 (Rankine Cycle).
Feature: Integrated Centrifugal Governor. Outcome: Facilitates the study of feedback loops and automated speed regulation in mechanical systems.
Feature: Weighted Flywheel and Drive Pulley. Outcome: Enables the demonstration of kinetic energy storage and mechanical torque transmission to peripheral laboratory loads.

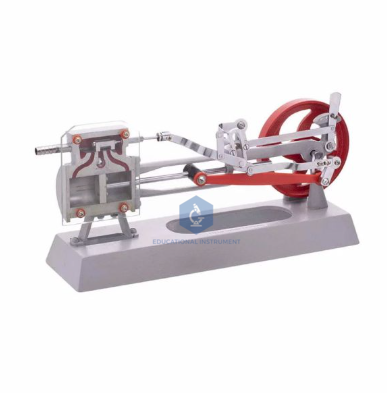

Feature: Sectional View / Exposed Linkages. Outcome: Supports visual tracking of the conversion from linear piston movement to rotational motion (Kinematics of Machinery).
International Logistics & Compliance
To ensure the protection of high-tolerance mechanical linkages during multi-modal transit, this Educational Instrument is secured in export-grade seaworthy crating (ISPM-15 compliant). The procurement package is delivered with a Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical User Manuals in English. The unit features a tropicalized design, utilizing oxidation-resistant alloys and anti-corrosive coatings tested for sustained operational integrity in environments reaching 45°C and 90% humidity.
Why Source from the OEM
Procuring from the Original Equipment Manufacturer ensures vertical integration across the fabrication process, from the precision casting of the engine block to the high-tolerance machining of the cylinder bore. Unlike third-party traders, our facility provides batch-tested uniformity in compression and friction coefficients. Direct factory engagement guarantees institutional long-term viability through immediate spares availability and consistent specification matching for large-scale tender fulfillments.
