Four Stoke Single Cylinder Petrol Engine
Product Code : EL-E-11330

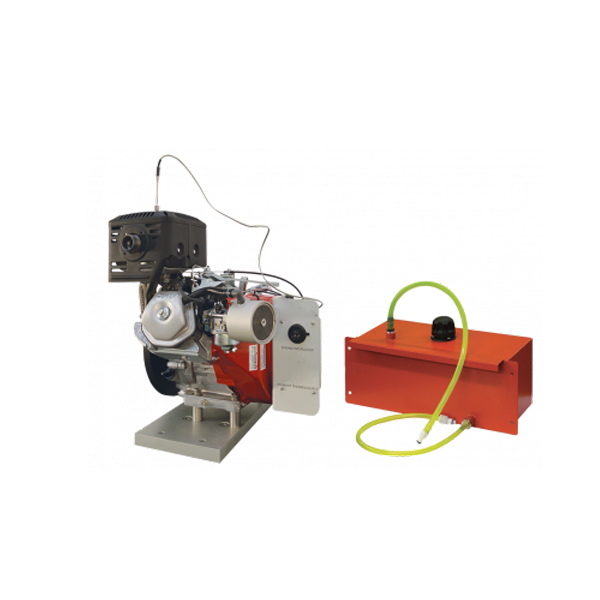

Quick Answer: The Four Stroke Single Cylinder Petrol Engine is a test engine with a modified cylinder head and crank, mounted on a bed plate that locates on the test set dynamometer with dowels and slots. It comes with an exhaust thermocouple, a dynamometer half-coupling, hoses and fittings, and a colour-coded fuel tank with self-sealing couplings.
Last updated: October 2026
Key Features
- Modified cylinder head and crank for use with the Cylinder Head Pressure Transducer and Crank Angle Encoder, which connect to the Engine Cycle Analyser
- Bed plate with dowels and slots that align it with the dynamometer, cutting the time needed to swap engines
- Interlocking relays cut the ignition on mains power failure or emergency stop
- Flame arrestor in the air inlet
- Removable colour-coded fuel tank with self-sealing couplings, for filling or storage in a fuel locker
- Supplied with an exhaust thermocouple, a half-coupling for the test set dynamometer, and hoses and fittings
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Four stroke, single cylinder, petrol |
| Mounting | Bed plate with dowels and slots |
| Included | Exhaust thermocouple, dynamometer half-coupling, hoses and fittings, fuel tank |
| Fuel tank | Removable, colour-coded, self-sealing couplings |
| Protection | Interlocking ignition cut-out relays; flame arrestor on air inlet |
| Works with | Cylinder Head Pressure Transducer, Crank Angle Encoder, Engine Cycle Analyser |
About This Product
The engine is adapted for laboratory testing and demonstrations on an engine test set and dynamometer. Students run performance tests and, with the pressure transducer and crank angle encoder fitted, extend the work to cylinder pressure and cycle analysis.
Frequently Asked Questions
Can the fuel tank be removed from the Four Stroke Single Cylinder Petrol Engine?
Yes. The colour-coded fuel tank can be removed for filling or for storage in a fuel locker when not in use, which also prevents unauthorised use of the engine.
What happens to the petrol engine if the mains power fails?
Interlocking relays on the engine immediately cut the ignition if a mains power failure or emergency stop occurs.
Related: Engines, Four Stoke Single Cylinder Diesel Engine, Manual Volumetric Fuel Gauge and 4 Stroke Petrol Engine.
For a quotation on the Four Stoke Single Cylinder Petrol Engine, contact Educational Instrument.
