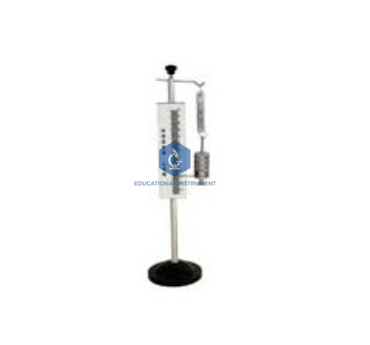

Hook's Law Apparatus
Product Code : SCL-MH-11953
The Hooke’s Law Apparatus is a precision-engineered mechanical assembly designed for the empirical verification of stress-strain relationships and spring constant determination. Engineered for Secondary and Vocational Technical Education (TVET), it ensures reproducible linear displacement measurements. Manufactured under ISO 9001:2015 protocols, the instrument facilitates high-accuracy data acquisition for calculating Young’s Modulus and Hooke’s Law compliance in laboratory environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Polished Mirror Scale; Powder-Coated Steel Pillar and Base |
|
Measurement Accuracy |
Parallax-reduction via integrated mirror scale (mm graduation) |
|
Spring Configuration |
Precision-coiled tension spring with adjustable indicator |
|
Load Handling |
Integrated weight hanger with slotted mass compatibility |
|
Dimensions |
Height: approx. 80cm; Weighted stable base |
|
ISO Compliance Code |
ISO 9001:2015 Quality Management Systems |
|
HS Code |
9023.00 (Instruments, apparatus and models, designed for demonstrational purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Integrated Anti-Parallax Mirror Scale. Outcome: Enables students to perform precision alignment of the pointer, reducing observational error in linear extension measurements (Application Level).
Feature: Adjustable Pillar Clamps and Spring Suspension. Outcome: Allows for the testing of multiple spring gauges, facilitating the comparative analysis of stiffness and elastic limits (Analysis Level).
Feature: High-Stability Weighted Base. Outcome: Prevents structural oscillation during mass loading, ensuring data integrity for calculating the Force/Displacement gradient (Evaluation Level).
International Logistics & Compliance
To meet the requirements of international procurement tenders, this Educational Instrument is prepared with export-grade seaworthy crating (ISPM-15 compliant) to prevent transit damage. Full documentation packages are provided, including the Manufacturer’s Authorization Form (MAF), internal IQ/OQ/PQ Certification, and technical User Manuals in English. The apparatus features a tropicalized design, utilizing corrosion-resistant coatings batch-tested for operational stability in environments up to 45°C and 90% Humidity.
Why Source from the OEM?
Procuring from the OEM ensures complete vertical integration, from raw steel machining to the final calibration of the mirror scale. Our facility utilizes in-house precision metal fabrication and batch-testing for uniformity to ensure that every unit meets strict dimensional tolerances. Direct sourcing guarantees factory-direct spares availability and long-term technical support, providing a lifecycle reliability that third-party traders cannot substantiate.
