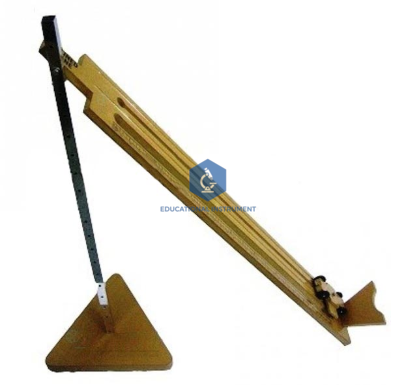

Inclined Plane, Euro
Product Code : SCL-MH-11936
Engineered for the empirical determination of the coefficients of static and kinetic friction, this instrument facilitates the vector analysis of forces on an inclined surface. Designed for University and Advanced Secondary physics laboratories, it meets international pedagogical standards for Newtonian mechanics. The assembly ensures high-repeatability data acquisition for calculating acceleration due to gravity and mechanical advantage in TVET vocational frameworks.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Laminated Hardwood Track / High-Density Polymer Base |
|
Inclination Mechanism |
Hinged Plane with integrated linear adjustment |
|
Angular Measurement |
Graduated Protractor Scale (0-45° Arc) |
|
Friction Surfaces |
Multi-texture material set (Wood, Metal, Glass) |
|
Dimensions |
600mm x 100mm (Effective Track Surface) |
|
ISO Compliance |
ISO 9001:2015 Manufacturing Standards |
|
HS Code |
9023.00.00 (Educational Instruments/Apparatus) |
|
Ancillary Components |
Low-friction pulley, roller, and weight pan |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Multi-Surface Friction Blocks. Outcome: Enables students to evaluate the relationship between surface morphology and frictional resistance, supporting Materials Science Module 2.1.
Feature: Integrated Graduated Protractor. Outcome: Facilitates precise angular displacement measurement, allowing learners to calculate trigonometric force resolutions with high statistical confidence.
Feature: Low-Friction Adjustable Pulley. Outcome: Minimizes non-conservative force interference, ensuring experimental results align with theoretical mathematical models for Work-Energy theorems.
Feature: Hinged Variable Incline. Outcome: Provides the mechanical basis for investigating the "Angle of Repose," enabling the synthesis of data regarding static equilibrium limits.
International Logistics & Compliance
This instrument is prepared for global tender fulfillment via export-grade seaworthy crating (ISPM-15 compliant) to ensure structural integrity during maritime transit. Documentation provided with each consignment includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive technical User Manuals in English. The hardware features a tropicalized design, tested for operational stability in high-temperature environments up to 45°C and 90% non-condensing humidity, ensuring longevity in diverse laboratory climates.
Why Source from the OEM?
Direct procurement from the OEM ensures rigorous vertical integration and adherence to technical tolerances that traders cannot verify. Each unit undergoes batch-testing for uniformity in track planarity and scale calibration accuracy. Sourcing at the factory level guarantees direct factory spares availability and long-term technical support. Our in-house precision machining and assembly protocols eliminate middle-market variability, providing procurement officers with a verifiable audit trail of material provenance and mechanical compliance.
