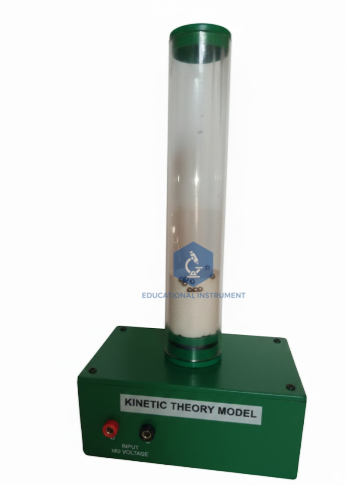

Kinetic Theory Apparatus
Product Code : SCL-PLE-11820
The Educational Instrument for Kinetic Theory is a precision-engineered demonstration unit designed to visualize molecular dynamics in gaseous states. It simulates elastic collisions, pressure-volume relationships, and thermal kinetic energy distributions.1 Built to facilitate quantitative and qualitative analysis in University and Advanced Vocational laboratories, it complies with standard pedagogical requirements for thermodynamics and statistical mechanics modules.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Primary Tube Material |
High-Transparency UV-Stabilized Acrylic (PMMA) |
|
Base Construction |
Impact-Resistant ABS Polymer with Reinforced Internal Chassis |
|
Drive Mechanism |
6V-12V Low-Voltage DC High-Torque Motor |
|
Interface/Terminals |
4mm Shrouded Safety Sockets (Color-Coded) |
|
Simulation Media |
Precision-Grade Chrome Steel Spheres & Low-Density Polymeric Beads |
|
Speed Regulation |
Stepless Variable Potentiometer (PWM Control Compatible) |
|
Dimensions |
190mm x 190mm x 380mm (± 5mm) |
|
Input Voltage |
3V to 6V DC (Nominal) |
|
HS Code |
9023.00 (Instruments, apparatus and models, designed for demonstrational purposes) |
|
ISO Compliance |
Manufactured under ISO 9001:2015 Quality Management Systems |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Variable Voltage Motor Drive. Outcome: Allows students to correlate macroscopic temperature increases with microscopic particle velocity, supporting the Analysis of the Kinetic Temperature Scale.
Feature: Transparent Cylindrical Chamber. Outcome: Enables direct Observation of "Brownian-style" random motion and mean free path concepts in real-time.
Feature: Adjustable Loading Piston (Mass Disks).Outcome: Facilitates the Evaluation of Boyle’s Law and the relationship between gravitational force (pressure) and gas volume.
Feature: Dual-Media Simulation (Metal vs. Plastic spheres). Outcome: Permits students to Hypothesize and test the effects of particle mass on collision frequency and momentum transfer.
International Logistics & Compliance
This instrument is prepared for global distribution via export-grade seaworthy crating (ISPM-15 compliant) to ensure structural integrity during maritime or aerial transit. Comprehensive documentation, including the Manufacturer’s Authorization Form (MAF), Certificate of Origin, and technical manuals in English, is provided with every shipment. The unit features a tropicalized design, validated for sustained operation in laboratory environments up to 45°C and 90% non-condensing humidity.
Why Source from the OEM
Procuring directly from the manufacturer ensures vertical integration and total quality oversight. Unlike third-party traders, our facility manages in-house component fabrication, from precision acrylic machining to motor calibration. This alignment guarantees batch-tested uniformity across large-scale tenders and ensures long-term institutional support through direct factory spares availability and dedicated technical consultation.
