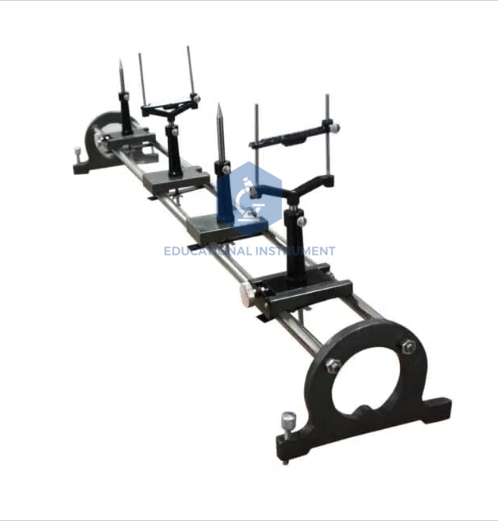

Optical Bench Ordinary
.png)
Product Code : SCL-OS-12232
Engineered for high-precision linear optical path alignment, this double-rod Educational Instrument facilitates the empirical determination of focal lengths, nodal points, and diffraction patterns. Optimized for University and Advanced Research laboratories, it ensures adherence to rigorous geometric optics standards. The ruggedized steel-rod assembly and calibrated sliding riders provide repeatable data acquisition in high-usage instructional environments.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Material Grade |
Chrome-Plated Stainless Steel Rods / Die-Cast Heavy Pillars |
|
Graduation |
0 to 1000mm (or 1500mm) Millimeter Scale with Vernier Precision |
|
Rod Diameter |
Standardized 19mm / 22mm Ruggedized Steel |
|
Mounting System |
Four/Five Universal Sliding Riders with Lateral and Vertical Adjustment |
|
ISO Compliance Code |
Manufactured under ISO 9001:2015 Quality Management Systems |
|
HS Code |
9023.00.00 (Instruments/Models for Demonstrational Purposes) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Parallel double-rod track system. Outcome: Eliminates lateral axis tilt, allowing students to "Analyze" multi-lens system alignment without mechanical interference.
Feature: Vernier-scale calibrated riders. Outcome: Facilitates the "Evaluation" of object-to-image distances with sub-millimeter precision, supporting Wave Optics Module 301.
Feature: Height-adjustable optical mounts. Outcome: Supports the "Application" of the Displacement Method and thin-lens equations through precise centering of the optical axis.
International Logistics & Compliance
Every unit is prepared for global distribution using export-grade seaworthy crating (ISPM-15 compliant) to ensure the rods maintain perfect linearity and calibration during intercontinental transit. Standard procurement documentation includes the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and comprehensive technical User Manuals in English. The apparatus features a tropicalized design, with corrosion-resistant plating and UV-stabilized mounts tested for operational stability in environments up to 45°C and 90% Humidity.
Why Source from the OEM
Procuring directly from the OEM ensures total vertical integration, from the precision machining of the chrome-plated rods to the final calibration of the laser-etched scales. Every Educational Instrument is batch-tested for uniformity in rod parallelism to eliminate experimental variance across large-scale institutional deployments. Sourcing through the manufacturer guarantees direct factory spares availability, in-house technical calibration, and engineering-level support for specialized institutional tenders, providing a superior life-cycle value compared to trader-sourced alternatives.
