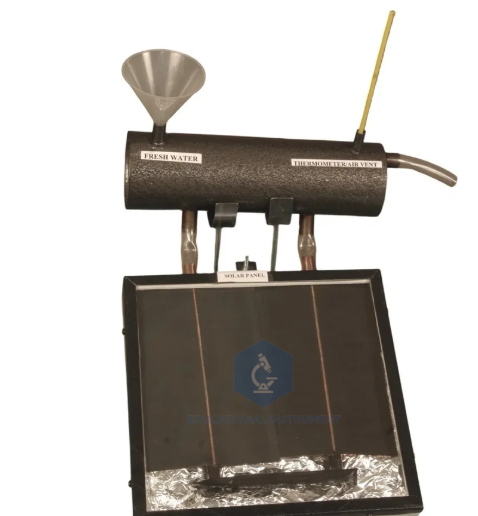

Solar Water Heater Model
.png)
Product Code : SCL-TMFEEL-12154
Engineered for secondary and vocational thermodynamics modules, this Educational Instrument facilitates the empirical study of solar-to-thermal energy conversion. Optimized for laboratory-scale verification of heat transfer principles and absorption efficiency, it complies with ISO/IEC safety standards for educational apparatus. The system enables precise measurement of temperature differentials, supporting curriculum-aligned investigations into renewable energy technologies and environmental engineering.
Technical Specifications
|
Tender Specification |
OEM Technical Detail |
|
Collector Type |
High-Absorptivity Flat Plate Collector |
|
Circulation System |
Passive Thermosyphon or Pumped Loop Integration Capability |
|
Material Grade |
Corrosion-Resistant Powder-Coated Chassis; Copper/Aluminium Heat Exchanger |
|
Storage Unit |
Insulated Thermal Reservoir with Integrated Temperature Ports |
|
Dimensions |
Form-factored for standard laboratory benchtop footprint |
|
ISO Compliance Code |
ISO 9001:2015 Manufacturing Process Control |
|
HS Code |
9023.00.00 (Demonstrational Instruments) |
Key Pedagogical Outcomes (Bloom’s Taxonomy)
Feature: Integrated Fluid Storage Tank. Outcome: Allows students to quantify thermal retention and stratification, supporting Thermodynamics Module 202 (Heat Capacity and Insulation).
Feature: Calibrated Temperature Probes. -Outcome: Facilitates real-time data acquisition for calculating system efficiency and heat gain, aligning with "Apply" and "Analyze" cognitive levels.
Feature: Adjustable Collector Inclination. Outcome: Enables the investigation of incident light angle on energy absorption rates, reinforcing geometric optics and solar positioning theories.
Feature: Transparent Glazing System. Outcome: Demonstrates the greenhouse effect and convective heat loss suppression, allowing students to evaluate material performance in renewable systems.
International Logistics & Compliance
To ensure hardware integrity during intermodal transit, all units are secured in export-grade seaworthy crating (ISPM-15 compliant). Comprehensive documentation packages provided with each shipment include the Manufacturer’s Authorization Form (MAF), IQ/OQ/PQ Certification, and technical User Manuals in English. The ruggedized, tropicalized design is tested for sustained operation in ambient temperatures up to 45°C and 90% non-condensing humidity, ensuring operational longevity in diverse procurement regions.
Why Source from the OEM
Direct procurement from the OEM ensures total vertical integration, including in-house precision manifold welding and batch-testing for thermal uniformity. By eliminating intermediary traders, institutional buyers receive guaranteed direct factory spares availability and specialized technical support. Each Educational Instrument undergoes rigorous pressure and leak testing prior to dispatch, ensuring reliability for high-frequency laboratory use and multi-year tender cycles.
